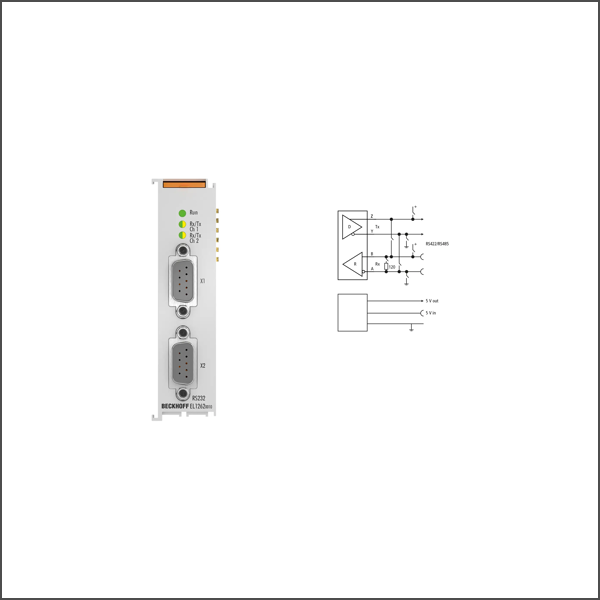

EL1262 EtherCAT Terminal
SKU: EL1262
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EL1262 digital input terminal acquires the fast binary 24 V control signals from the process level and transmits them, in an electrically isolated form, to the controller. The EtherCAT Terminal has two channels that indicate their signal state via light emitting diodes.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: 4-wire
Specification: similar to EN 61131-2, type 3, “0”: -3…5 V DC, “1”: 11…30 V DC, typ. 3 mA input current
Number of inputs: 2
Nominal voltage: 24 V DC (-15 %/+20 %)
“0” signal voltage: -3…+5 V (EN 61131-2, type 3)
“1” signal voltage: 11…30 V (EN 61131-2, type 3)
Input current: typ. 3 mA
Input filter: typ. < 1 µs
Oversampling/multi-timestamping factor: n = integer multiple of the cycle time, 1…1000, see documentation
Precision of timestamp in the terminal: 10 ns (+ input delay)
Distributed clock precision:
