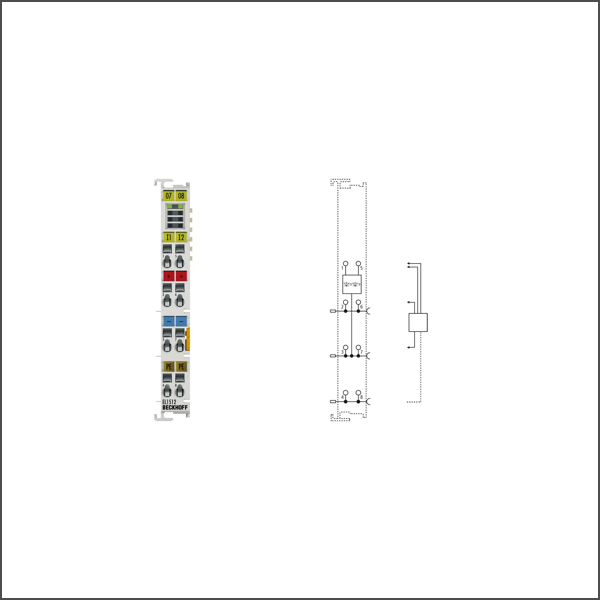

EL1512 EtherCAT Terminal
SKU: EL1512
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EL1512 EtherCAT Terminal is an up/down counter and transmits the counter value in an electrically isolated form to the higher-level automation device. When used as a single-channel up/down counter (32-bit), the pulse is set via the clock input; the counting direction is specified via the U/D input.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: 1 x up/down counter, 2 x up or down counter
Specification: EN 61131-2, type 1, “0”: < 5 V DC, “1”: > 15 V DC, typ. 5 mA
Number of counters: 1 or 2
Nominal voltage: 24 V DC (-15 %/+20 %)
“0” signal voltage: -3…+5 V (EN 61131-2, type 1)
“1” signal voltage: 15…30 V (EN 61131-2, type 1)
Input current: typ. 5 mA (EN 61131-2, type 1)
Counting frequency: max. 1 kHz
Current consumption power contacts: typ. 14 mA + load
Current consumption E-bus: typ. 130 mA
Counter depth: 32 bit
Electrical isolation: 500 V (E-bus/field potential)
Configuration: no address setting, configuration via the EtherCAT master
Special features: set counters
Weight: approx. 50 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Pluggable wiring: for all ESxxxx terminals
Approvals/markings: CE, UL, ATEX, IECEx
Ex marking: ATEX: II 3 G Ex nA IIC T4 Gc/IECEx: Ex ec IIC T4 Gc
