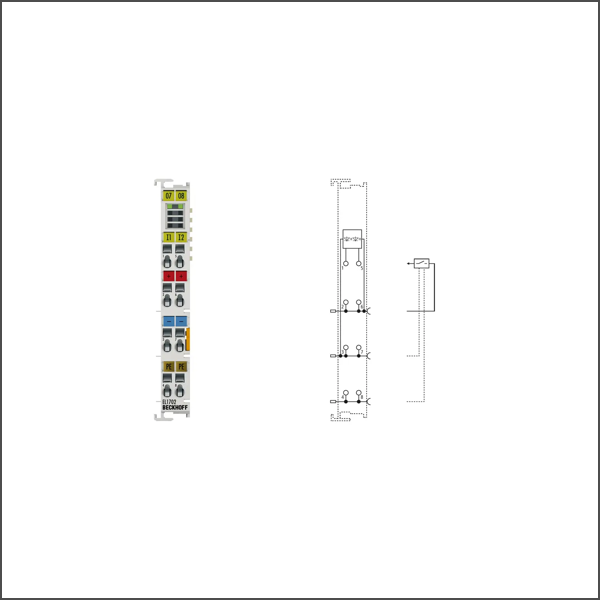

EL1702 EtherCAT Terminal
SKU: EL1702
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EL1702 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The direct connection of 120 V/230 V AC signals is possible.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: 4-wire
Number of inputs: 2
Nominal voltage: 120/230 V AC
“0” signal voltage: 0…40 V
“1” signal voltage: 79…260 V
Input current: > 3 mA, typ. 6 mA
Input filter: typ. 10 ms
Switching times: 10 ms
Current consumption E-bus: typ. 90 mA
Electrical isolation: 500 V (E-bus/mains voltage); 3750 V AC, 1 min.
Configuration: no address or configuration setting
Weight: approx. 60 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Pluggable wiring: for all ESxxxx terminals
