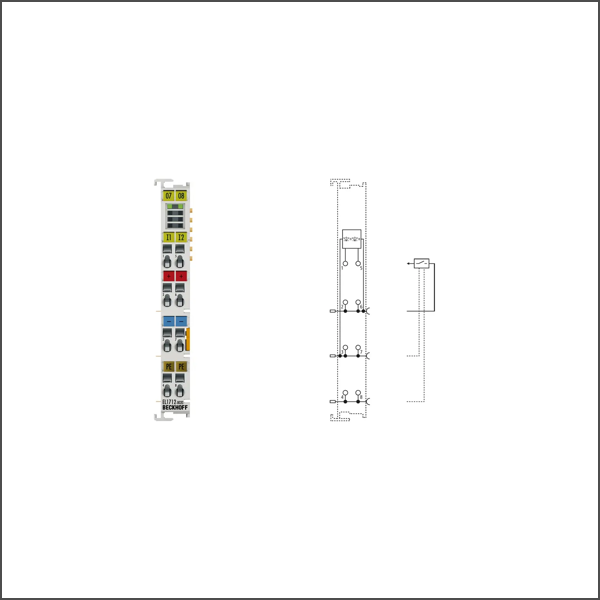

EL1712-0020 EtherCAT Terminal
SKU: EL1712-0020
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EL1712-0020 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The direct connection of 120 V DC signals is possible.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: 4-wire
Number of inputs: 2
Nominal voltage: 120 V DC
“0” signal voltage: 0…40 V
“1” signal voltage: 80…140 V
Input current: typ. 3 mA
Input filter: typ. 3.0 ms
Current consumption power contacts: load-dependent
Current consumption E-bus: typ. 90 mA
Electrical isolation: 500 V (E-bus/field potential)
Special features: direct connection of DC actuators
Weight : approx. 60 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: Conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Pluggable wiring: for all ESxxxx terminals
