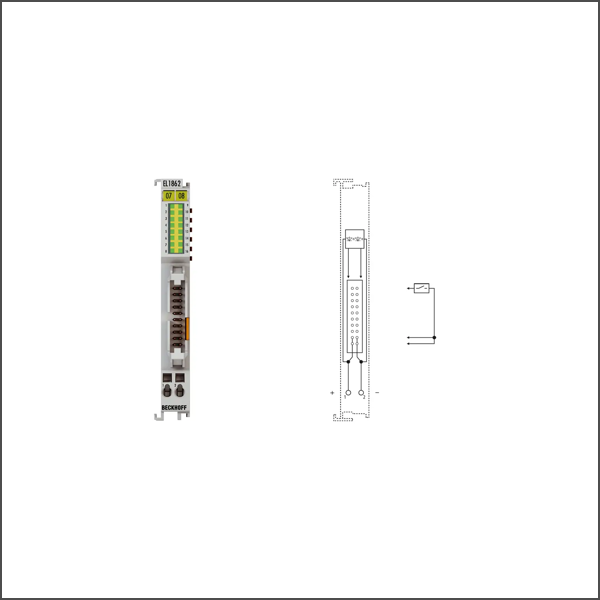

EL1862 EtherCAT Terminal
SKU: EL1862
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EL1862 digital input terminal offers 16 channels in a very compact design. A 20-pin contact strip enables the secure connection of plug connectors using insulation displacement contact, as is usual for ribbon cables and special round cables. This significantly simplifies the wiring of many channels.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: flat-ribbon cable
Specification: EN 61131-2, type 1/3
Number of inputs: 16
Nominal voltage: 24 V DC (-15 %/+20 %)
Rated current: max. 1 A per connection pin
“0” signal voltage: -3…+5 V (EN 61131-2, type 1/3)
“1” signal voltage: 11…30 V (EN 61131-2, type 3)
Input current: typ. 3 mA (EN 61131-2, type 3)
Input filter: typ. 3.0 ms
Current consumption power contacts: 4 mA from the 24 V supply (no power contacts)
Current consumption E-bus: typ. 100 mA
Electrical isolation: 500 V (E-bus/field potential)
Bit width in the process image: 16 inputs
Configuration: no address or configuration setting
Special features: also available as ground switching
Weight : approx. 60 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Approvals/markings: CE, UL, ATEX
Ex marking: II 3 G Ex nA IIC T4 Gc
