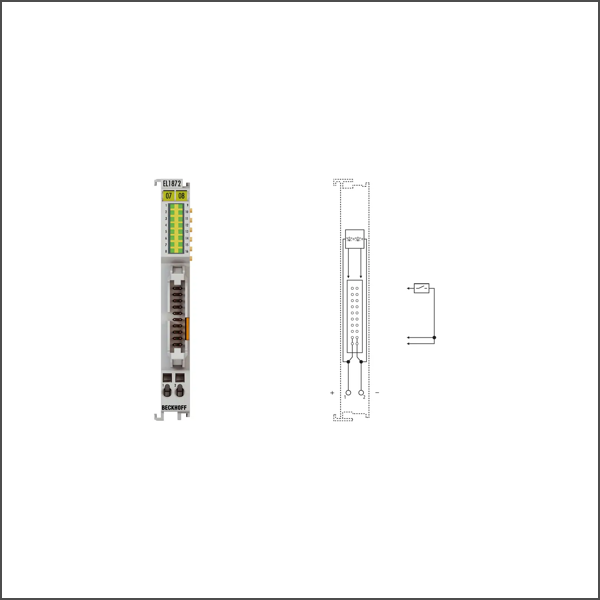

EL1872-0010 EtherCAT Terminal
SKU: EL1872-0010
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EL1872-0010 digital input terminal offers 16 channels in a very compact design. A 20-pin contact strip enables the secure connection of plug connectors using insulation displacement contact, as is usual for ribbon cables and special round cables.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: flat-ribbon cable
Specification: ground switching “0”: 18…30 V DC, “1”: 0…7 V DC, typ. 3 mA input current
Number of inputs: 16
Nominal voltage: 24 V DC (-15 %/+20 %)
Rated current: max. 1 A per connection pin
“0” signal voltage: 18…30 V
“1” signal voltage: 0…7 V
Input current: typ. 3 mA (EN 61131-2, type 3)
Input filter: typ. 10 µs
Current consumption power contacts: typ. 45 mA from the 24 V supply (no power contacts)
Current consumption E-bus: typ. 100 mA
Electrical isolation: 500 V (E-bus/field potential)
Weight : approx. 60 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Approvals/markings: CE, UL
