EL2004 EtherCAT Terminal
SKU: EL2004
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

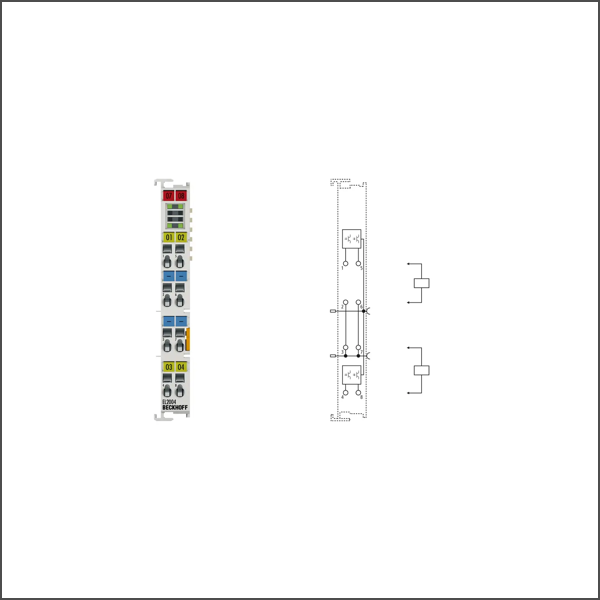

The EL2004 digital output terminal connects the binary 24 V DC control signals from the automation device on to the actuators at the process level with electrical isolation. The EtherCAT Terminal contains four channels that indicate its signal state by means of light emitting diodes.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: 2-wire
Number of outputs: 4
Nominal voltage: 24 V DC (-15 %/+20 %)
Load type: ohmic, inductive, lamp load
Max. output current: 0.5 A (short-circuit proof) per channel
Short-circuit current: typ. < 2 A
Reverse voltage protection: yes
Breaking energy: < 150 mJ/channel
Switching times: typ. TON: 60 µs, typ. TOFF: 300 µs
Current consumption E-bus: typ. 100 mA
Electrical isolation: 500 V (E-bus/field potential)
Current consumption power contacts: typ. 15 mA + load
Bit width in the process image: 4 outputs
Configuration: no address or configuration setting
Weight: approx. 55 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Pluggable wiring: for all ESxxxx terminals
Approvals/markings: CE, UL, ATEX, IECEx, DNV GL
Ex marking: ATEX: II 3 G Ex nA IIC T4 Gc/ IECEx: Ex ec IIC T4 Gc
