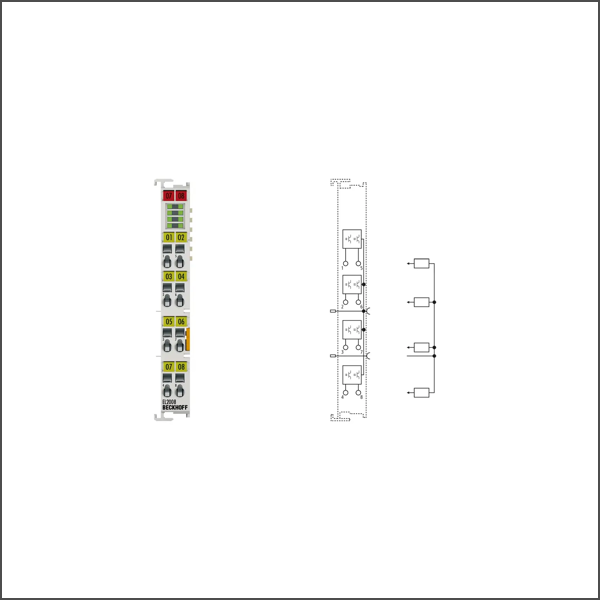

EL2008 EtherCAT Terminal

Connection technology: 1-wire Number of outputs: 8 Nominal voltage: 24 V DC (-15 %/+20 %) Load type: ohmic, inductive, lamp load Max. output current: 0.5 A (short-circuit proof) per channel Short-circuit current: typ. < 2 A Reverse voltage protection: yes Breaking energy : < 150 mJ/channel Switching times: typ. TON: 60 µs, typ. TOFF: 300 µs Current consumption E-bus: typ. 110 mA Electrical isolation: 500 V (E-bus/field potential) Current consumption power contacts: typ. 15 mA + load Bit width in the process image: 8 outputs Configuration: no address or configuration setting Weight: approx. 55 g Operating/storage temperature: -25…+60 °C/-40…+85 °C Relative humidity: 95 %, no condensation Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos.: IP20/see documentation Pluggable wiring: for all ESxxxx terminals Approvals/markings: CE, UL, ATEX, IECEx, DNV GL, cFMus Ex marking: ATEX: II 3 G Ex nA IIC T4 Gc/IECEx: Ex ec IIC T4 Gc/cFMus: Class I, Division 2, Groups A, B, C, D, Class I, Zone 2, AEx ec IIC T4 Gc
