EL2024-0010 EtherCAT Terminal
SKU: EL2024-0010
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

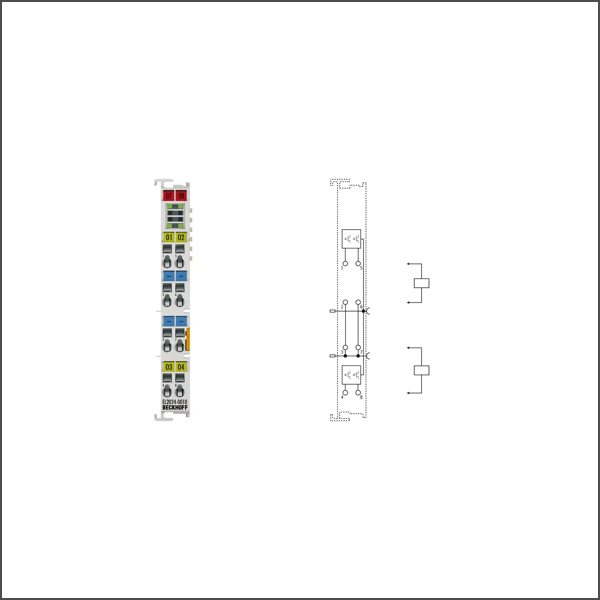

The EL2024-0010 digital output terminal connects binary 12 V DC control signals to the actuators with electrical isolation. Four channels are available, which indicate their signal state via LEDs.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: 2-wire
Number of outputs: 4
Nominal voltage: 12 V DC (-15 %/+20 %)
Load type: ohmic, inductive, lamp load
Max. output current: 2.0 A (short-circuit proof) per channel
Short-circuit current: typ. < 70 A
Reverse voltage protection: yes
Breaking energy : < 1.7 J/channel
Switching times: typ. TON: 40 µs, typ. TOFF: 200 µs
Current consumption E-bus: typ. 120 mA
Electrical isolation: 500 V (E-bus/field potential)
Current consumption power contacts: typ. 13 mA + load
Bit width in the process image: 4 outputs
Configuration: no address or configuration setting
Special features: for automotive applications
Weight: approx. 55 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Approvals/markings: CE, UL, ATEX, IECEx
Ex marking: ATEX: II 3 G Ex nA IIC T4 Gc/ IECEx: Ex ec IIC T4 Gc
