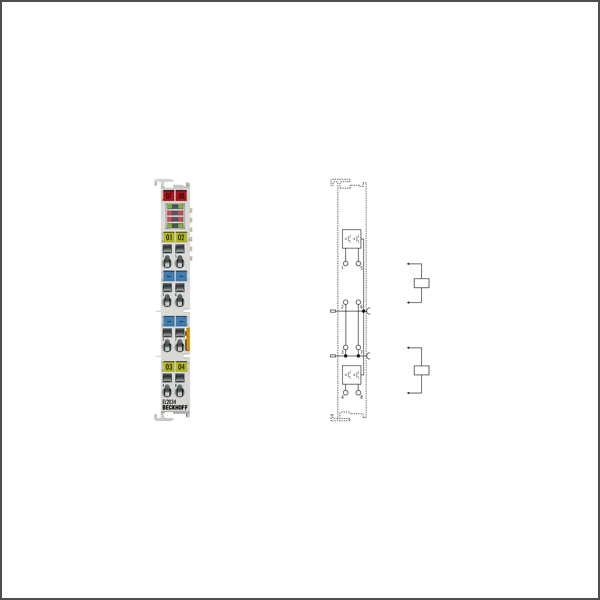

EL2034 EtherCAT Terminal
SKU: EL2034
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EL2034 digital output terminal connects the binary 24 V DC control signals from the automation device on to the actuators at the process level with electrical isolation. The EtherCAT Terminal has four channels that indicate their signal state via light emitting diodes.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: 2-wire
Number of outputs: 4
Nominal voltage: 24 V DC (-15 %/+20 %)
Load type: ohmic, inductive, lamp load
Max. output current: 2.0 A (short-circuit proof) per channel, with diagnostics
Short-circuit current: typ. < 70 A
Reverse voltage protection: yes
Breaking energy: < 1.7 J/channel
Switching times: typ. TON: 40 µs, typ. TOFF: 200 µs
Current consumption E-bus: typ. 120 mA
Electrical isolation: 500 V (E-bus/field potential)
Current consumption power contacts: typ. 14 mA + load
Bit width in the process image: 4 outputs + 4 diagnostic inputs
Configuration: no address or configuration setting
Special features: diagnostics: short circuit and open circuit
Weight: approx. 55 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Pluggable wiring: for all ESxxxx terminals
Approvals/markings: CE, UL, ATEX, IECEx
Ex marking: ATEX: II 3 G Ex nA IIC T4 Gc/IECEx: Ex ec IIC T4 Gc
