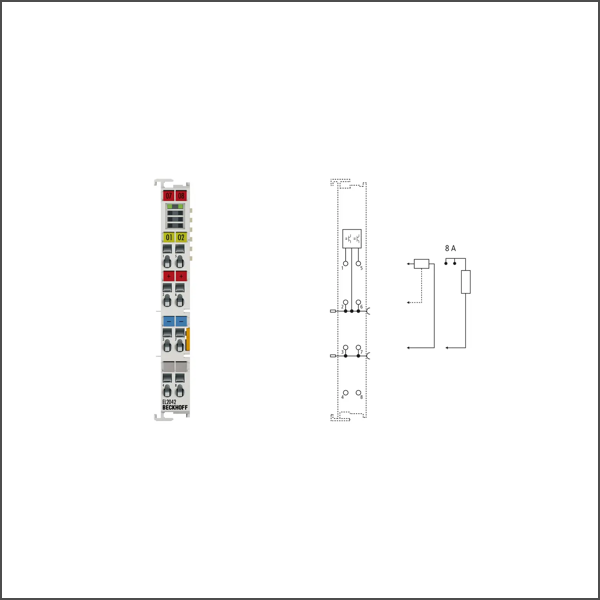

EL2042 EtherCAT Terminal
SKU: EL2042
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EL2042 digital output terminal connects binary 24 V DC control signals to the actuators with electrical isolation. Each EtherCAT Terminal contains two channels whose signal state is indicated by LEDs.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: 3-wire
Number of outputs: 2
Nominal voltage: 24 V DC (-15 %/+20 %)
Load type: ohmic, inductive, lamp load
Max. output current: 4.0 A (short-circuit proof) per channel, 8 A for parallel connection
Short-circuit current: typ. < 70 A
Reverse voltage protection: yes
Breaking energy : < 1.7 J/channel
Switching times typ.: TON: 40 µs, typ. TOFF: 200 µs
Current consumption E-bus: typ. 120 mA
Electrical isolation: 500 V (E-bus/field potential)
Current consumption power contacts: typ. 15 mA + load
Bit width in the process image: 2 outputs
Configuration: no address or configuration setting
Weight: approx. 55 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Pluggable wiring: for all ESxxxx terminals
Approvals/markings: CE
