EL2068 EtherCAT Terminal
SKU: EL2068
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

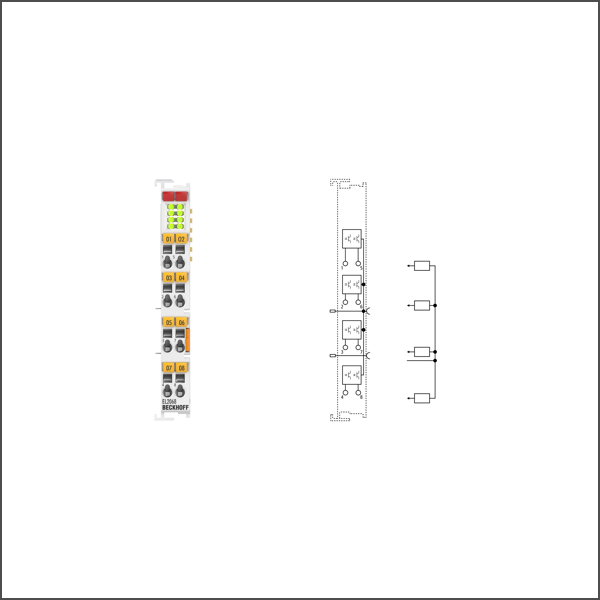

The EL2068 digital output terminal connects the binary control signals of the automation device to the actuators at process level with electrical isolation. This EtherCAT Terminal contains eight channels, which display their signal status by means of LEDs.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: 1-wire
Number of outputs: 8
Nominal voltage: 24 V DC (-15 %/+20 %)
Load type: ohmic, inductive, lamp load
Max. output current: 0.5 A (short-circuit proof) per channel
Output stage: push (high-side switch)
Short-circuit current: typ. < 1.5 A
Reverse voltage protection: yes
Breaking energy: < 150 mJ/channel
Switching times: typ. TON: 60 µs, typ. TOFF: 300 µs
Current consumption E-bus: typ. 60 mA
Electrical isolation: 500 V (E-bus/field potential)
Current consumption power contacts: typ. 25 mA + load
Bit width in the process image: 8 bit output, 8 bit diagnostics
Configuration: via TwinCAT System Manager
Special features: diagnostics via process data and LED: Overload (channel-by-channel)
Weight: approx. 50 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/see documentation
Pluggable wiring: for all ESxxxx terminals
Approvals/markings: CE, UL
