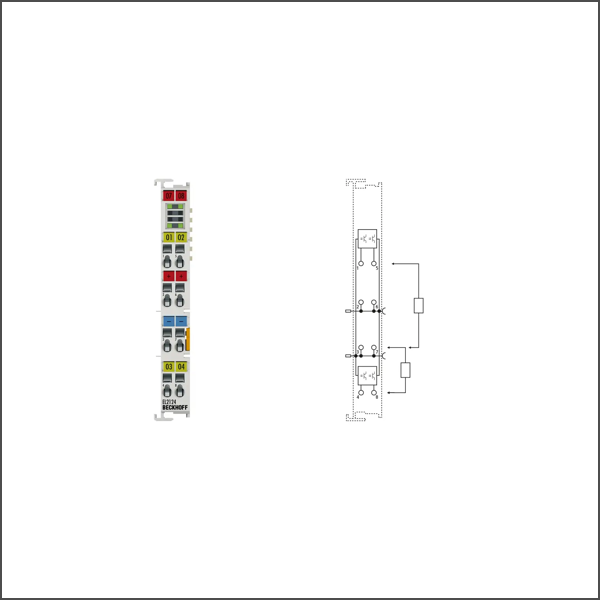

EL2124 EtherCAT Terminal
SKU: EL2124
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EL2124 digital output terminal connects the binary 5 V DC control signals from the automation device on to the actuators at the process level with electrical isolation. The EtherCAT Terminal contains four channels whose signal state is indicated by LEDs.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: 2-/3-wire
Number of outputs: 4
Nominal voltage: 5 V DC
Load type: ohmic, lamp load
Max. output current: ±20 mA (short-circuit proof) per channel, type CMOS output/push-pull
Switching times: typ. TON: < 1 µs, typ. TOFF: < 1 µs
Current consumption E-bus: typ. 130 mA
Electrical isolation: 500 V (E-bus/field potential)
Current consumption power contacts: typ. 12 mA + load
Special features: fast 5 V output
Weight: approx. 70 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Pluggable wiring: for all ESxxxx terminals
Approvals/markings: CE, UL, ATEX, IECEx
Ex marking: ATEX: II 3 G Ex nA IIC T4 Gc/ IECEx: Ex ec IIC T4 Gc
