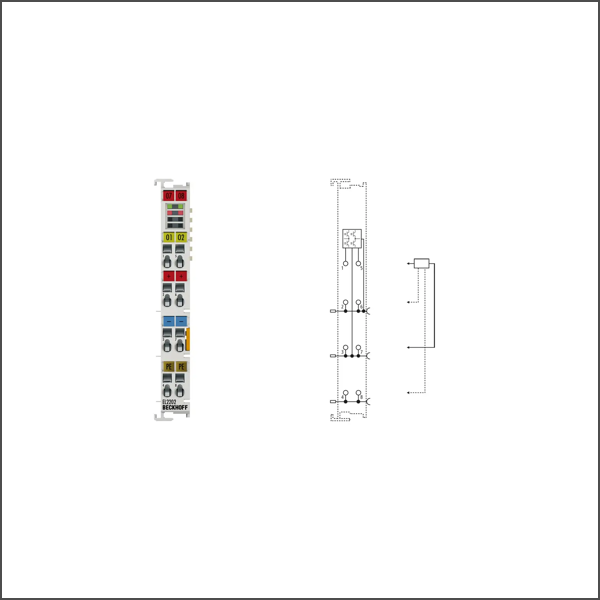

EL2202 EtherCAT Terminal
SKU: EL2202
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EL2202/EL2202-0100 digital output terminal connects the binary control signals from the automation device on to the actuators at the process level with electrical isolation. This terminal benefits from very small output delay and is therefore suitable for signals requiring particularly fast output.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: 4-wire
Number of outputs: 2
Nominal voltage: 24 V DC (-15 %/+20 %)
Load type: ohmic, inductive, lamp load
Max. output current: 0.5 A (short-circuit proof in push operation) per channel
Output stage: push-pull, high-ohmic
Short-circuit current: typ. 4 A/150 µs
Reverse voltage protection: yes
Breaking energy: < 150 mJ/channel
Switching times: typ. TON: < 1 µs, typ. TOFF: < 1 µs
Current consumption E-bus: typ. 130 mA
Electrical isolation: 500 V (E-bus/field potential)
Current consumption power contacts: typ. 30 mA + load
Bit width in the process image: 2 x 2 bit output
Configuration: no address or configuration setting
Special features: can be converted to DC version EL2202-0100, outputs connectable in high-resistance mode
Weight: approx. 60 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Pluggable wiring: for all ESxxxx terminals
Approvals/markings: CE, UL, ATEX, IECEx
Ex marking: ATEX: II 3 G Ex nA IIC T4 Gc/ IECEx: Ex ec IIC T4 Gc
