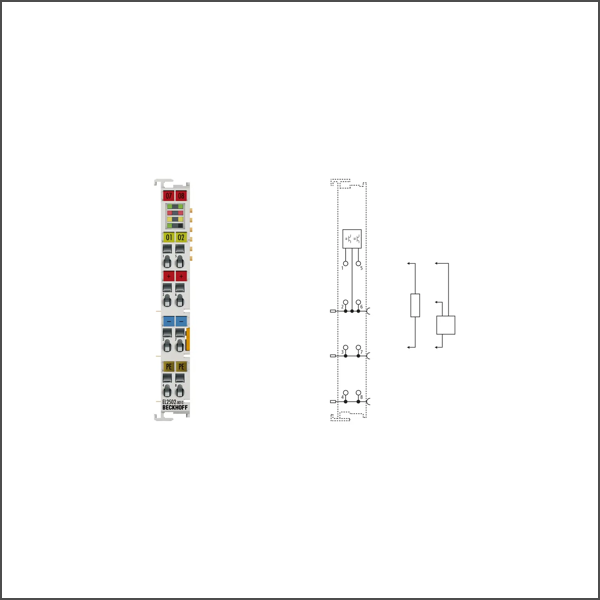

EL2502-0010 EtherCAT Terminal
SKU: EL2502-0010
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EL2502-0010 output terminal modulates the pulse width of a binary signal, and outputs it electrically isolated from the E-bus. The mark/space ratio is preset by a 16-bit value from the automation device.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: PWM output, push-pull outputs
Number of outputs: 2
Nominal voltage: 24 V DC (-15 %/+20 %)
Load type: ohmic, inductive, lamp load
Distributed clocks: yes
Max. output current: 0.5 A (short-circuit proof) per channel
Short-circuit current; typ. < 1.5 A
Base frequency: 20 Hz…500 kHz, default: 250 Hz
Duty factor: 0…100 % (TON > 750 ns, TOFF > 500 ns)
Resolution: 9…15 bit
Reverse voltage protection: yes
Current consumption E-bus; typ. 150 mA
Electrical isolation: 500 V (E-bus/field potential)
Current consumption power contacts: typ. 30 mA + load
Bit width in the process image 2 x 16 bit PWM output
Configuration: via TwinCAT System Manager
Special features: separate frequency can be set for each channel
Weight: approx. 50 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Approvals/markings: CE, UL, ATEX
