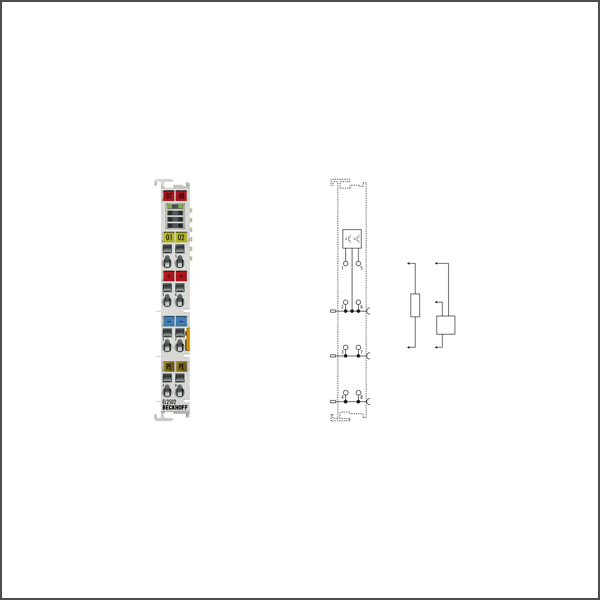

EL2502 EtherCAT Terminal

Connection technology: PWM output, push-pull outputs Number of outputs: 2 Nominal voltage: 24 V DC (-15 %/+20 %) Load type: ohmic, inductive, lamp load Max. output current: 0.5 A (short-circuit proof) per channel Short-circuit current: typ. < 1.5 A Base frequency: 1 Hz…125 kHz, 250 Hz default Duty factor: 0…100 % (TON > 750 ns, TOFF > 500 ns) Resolution: 9…15 bit Reverse voltage protection: yes Current consumption E-bus: typ. 150 mA Electrical isolation: 500 V (E-bus/field potential) Current consumption power contacts: typ. 30 mA + load Bit width in the process image: 2 x 16 bit PWM output Configuration: via TwinCAT System Manager Special features: separate frequency can be set for each channel Weight: approx. 50 g Operating/storage temperature: 0…+55 °C/-25…+85 °C Relative humidity: 95 %, no condensation Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos.: IP20/variable Pluggable wiring: for all ESxxxx terminals Approvals/markings: CE, UL, ATEX, IECEx Ex marking: ATEX: II 3 G Ex nA IIC T4 Gc/ IECEx: Ex ec IIC T4 Gc
