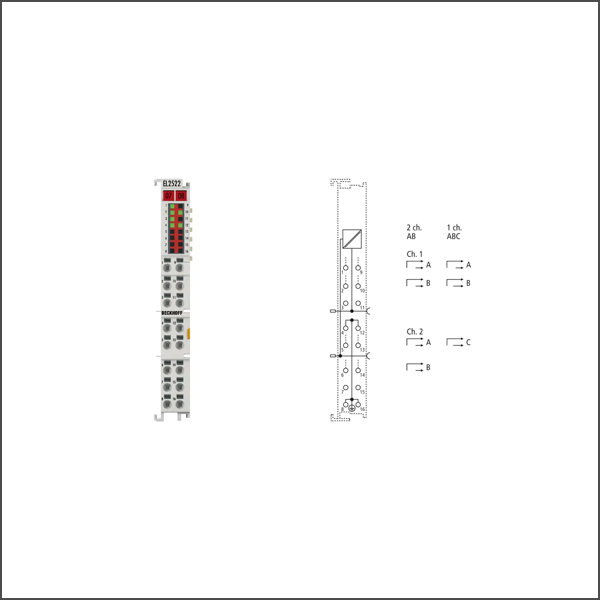

EL2522 EtherCAT Terminal
SKU: EL2522
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EL2522 incremental encoder simulation terminal (pulse train) outputs a frequency-modulable signal on two channels with four outputs. The signal can be used to control motor drivers or other signal receivers, which are controlled by single cycles.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: pulse train (frequency output)
Number of outputs: 2 channel A/B, 1 channel A/B/C (4 differential outputs)
Distributed clocks: yes
Output specification: RS422, differential, 50 mA, min. 120 Ω load
Short-circuit current: short-circuit proof
Base frequency: 0…4 MHz, 50 kHz default
Resolution: 16 bit (incl. sign, scaled via the set frequency range)
Step size: min. 10 ns (internal)
Current consumption: E-bus typ. 120 mA
Electrical isolation: 500 V (E-bus/field potential)
Current consumption power contacts: typ. 50 mA (load-dependent)
Special features: operating modes as with EL2521, ABC incremental encoder simulation including interfacing with TwinCAT NC
Weight : approx. 50 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Approvals/markings: CE, UL
