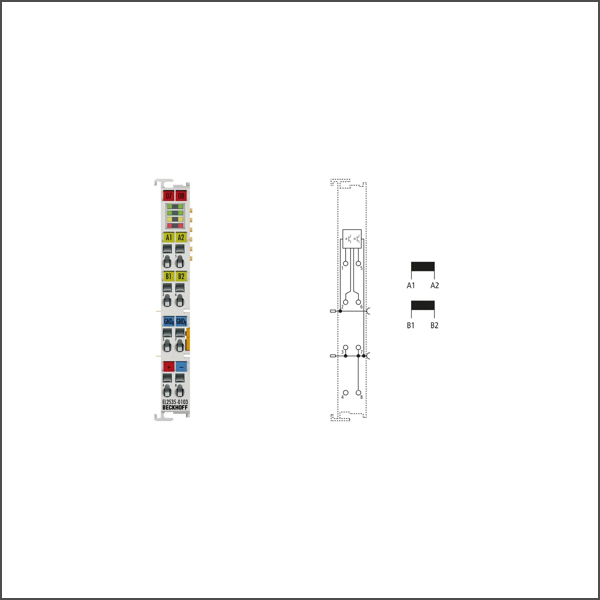

EL2535-0103 EtherCAT Terminal
SKU: EL2535-0103
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EL2535-xxxx output terminals control the output current through pulse width control of the supply voltage. They are electrically isolated from the E-bus. The current values (0 to maximum output current) are specified by the automation device through a 16-bit value.±100 mA max. output current per channel at 24 V DC rated voltage.
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: PWM output, push-pull outputs
Number of outputs: 2
Nominal voltage: 12…48 V DC
Load type: inductive > 1 mH
Max. output current: 3.5 A
Short-circuit current: typ. < 2 A
PWM clock frequency: 30 kHz default
Duty factor: 0…100 % (current-controlled)
Resolution: 10 bit
Reverse voltage protection: yes
Current consumption E-bus: typ. 110 mA
Electrical isolation: 500 V (E-bus/field potential)
Current consumption power contacts: typ. 30 mA + load
Bit width in the process image: 48 inputs/outputs: 2 x 16 bit data, 2 x 8 bit control/status
Weight: approx. 50 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/see documentation
Pluggable wiring: for all ESxxxx terminals
Approvals/markings: CE, IECEx
Ex marking: IECEx: Ex ec IIC T4 Gc
