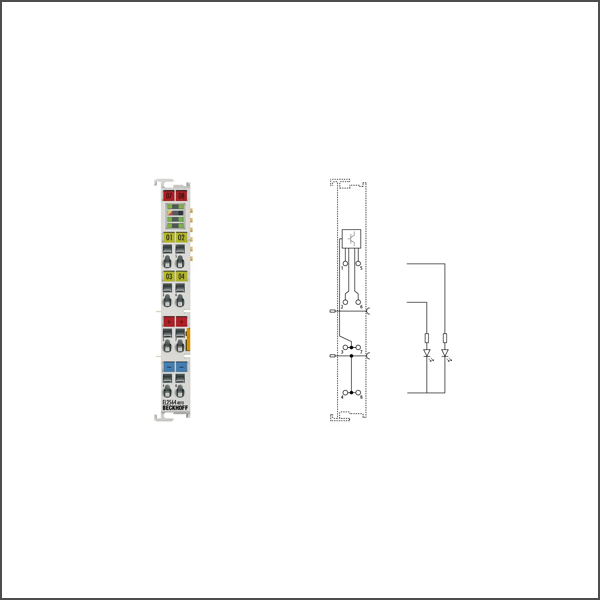

EL2564-0010 EtherCAT Terminal
SKU: EL2564-0010
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EL2564-0010 digital output terminal controls LEDs with integrated series resistor via an adjustable (ground switching) PWM signal. Common anode RGBW LEDs can be controlled with the four channels.
Buy currently uses Select Automation shop pricing and checkout.
Recommended use: general lighting, LED control, multicolor common cathode LEDs
Connection technology: 2-wire
Number of outputs: 4
Input voltage: 8…48 V DC
Load type: LED (ohmic)
Output voltage: ~ UIN
Max. output current: 3 A per channel
PWM clock frequency: 1 Hz…16 kHz, 5 kHz default
Duty factor: 0…100 %
Resolution: 15 bit (depending on PWM frequency)
Current consumption E-bus: typ. 70 mA
Configuration: via TwinCAT System Manager
Special features: PWM for common cathode LEDs, adjustable color share per channel (duty cycle), adjustable light intensity/brightness, adjustable frequency (anti-stroboscope)
Weight: approx. 50 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Approvals/markings: CE
