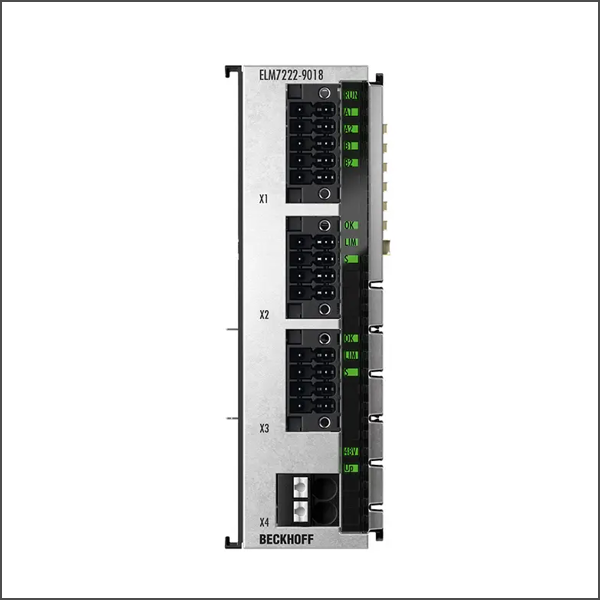

EtherCAT Terminal servomotor ELM7222-9018

Technology: compact drive technology Load type: permanent magnet-excited three-phase synchronous motor Number of channels: 1 Number of outputs: 1 x servomotor, 1 x motor brake, 1 x braking resistor Number of inputs: 2 x digital input, 1 x feedback Connection technology: direct motor connection with OCT Supply voltage electronics: 24 V DC (via power contacts) Supply voltage power: 8…48 V DC (external) Output current (rms): 8 A Peak current (rms): max. 16 A for 1 s PWM clock frequency: 16 kHz Current controller frequency: 32 kHz Rated speed controller frequency: 16 kHz Rotating field frequency: 0…599 Hz Output voltage motor brake: 24 V DC Output current: max. 0.5 A Current consumption power contacts: typ. 100 mA + holding current motor brake Current consumption E-bus: 120 mA Distributed clocks: yes Special features: compact (30 mm wide), absolute feedback, One Cable Technology (OCT), Safe Motion via TwinSAFE Electrical isolation: 500 V (E-bus/field potential) Weight: approx. 390 g Operating/storage temperature: 0…+55 °C/-25…+85 °C Relative humidity: 95 %, no condensation Approvals/markings: CE, (UL in preparation) Design form: metal housing with signal LEDs Material: zinc die-cast Dimensions (W x H x D): 30 mm x 100 mm x 95 mm Installation: on 35 mm DIN rail, conforming to EN 60715 with lock Wiring: specific push-in connection Design form: metal housing with signal LEDs Material: zinc die-cast Dimensions (W x H x D): 30 mm x 100 mm x 95 mm Installation: on 35 mm DIN rail, conforming to EN 60715 with lock Wiring: specific push-in connection
