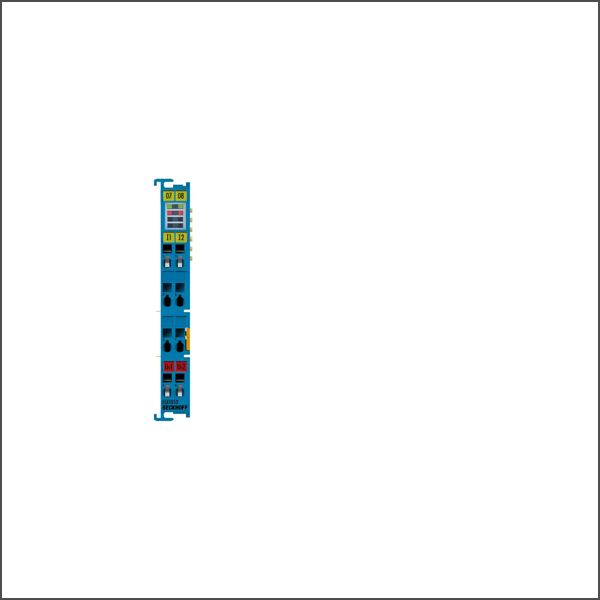

ELX1052 EtherCAT Terminal
SKU: ELX1052
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The ELX1052 digital input terminal allows the direct connection of intrinsically safe field devices located in hazardous areas classified zone 0/20 or 1/21 and acquires their signals in compliance with IEC 60947-5-6. The sensors are supplied with a voltage of 8.2 V and return a diagnosable current signal.
Buy currently uses Select Automation shop pricing and checkout.
Technology: digital input
Specification: NAMUR (IEC 60947-5-6)
Number of inputs: 2
Connection method: 2-wire
Open circuit voltage: typ. 8.2 V DC
“0” signal current: ≤ 1.2 mA
“1” signal current: ≥ 2.1 mA
Switching hysteresis: typ. 200 µA
Short-circuit current: typ. 8.2 mA
Fault detection: I ≤ 200 µA (cable break), I ≥ 6.3 mA (short circuit)
Max. switching frequency: typ. 50 Hz (duty factor 50 %)
Supply voltage electronics: 24 V DC (via power contacts), ELX9560 power supply
Current consumption power contacts: typ. 10 mA + load
Current consumption E-bus: typ. 50 mA
Weight : approx. 55 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/see documentation
Approvals/markings: CE, UL, ATEX, IECEx, cFMus, CCC
Ex marking: ATEX: II 3(1)G Ex ec [ia Ga] IIC T4 Gc, II (1)D [Ex ia Da] IIIC, I (M1) [Ex ia Ma] I/IECEx:
Ex ec [ia Ga] IIC T4 Gc, [Ex ia Da] IIIC, [Ex ia Ma] I/cFMus: AIS Class I, II, III, Division 1, Groups A thru G, Class I, Division 2, Groups A, B, C, D, Class I, Zone 2, AEx ec [ia Ga] IIC T4 Gc, [AEx ia Da] IIIC T4
