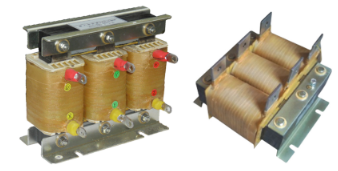

3-Phase 525V 2.2KW AC Input Choke
SKU: EM-RAI5-2d2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
EM-RAI5 Series Input Choke:
Rated Power (KW): 2.2.
Rated Current (A): 5.
Insulation class: F.
Housing: T1.
Buy currently uses Select Automation shop pricing and checkout.
Technical Data:
Rated working voltage: AC 3/380V~480V.
Tolerance voltage test: 3.5KV, AC/50Hz/5mA/60s.
Application of frequency: 0~60Hz.
Power: 0.4~600KW.
Working noise: <55dB.
Insulation resistance: 1000VDC: >100MOhm.
Dimension (mm) K x S x G x A x B x L*Z: 120 x 92 x 120 x 70 x 62 x 7*12.
