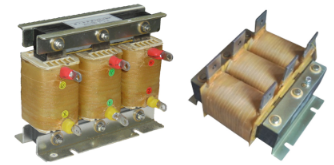

3-Phase 380V 15KW AC Output Choke
SKU: EM-RAO3-015
Out of stock
Availability: Out of Stock
Short Description
Specifications:
- Rated Power (KW): 15.
- 3-Phase 380V.
- Rated Current (A): 40.
- Insulation class: F.
- Housing: T1.
Technical Data:
- Inductance value(MH) @50Hz: 0.262.
- Rated working voltage: AC 3/380V~480V.
- Tolerance voltage test: 3.5KV, AC/50Hz/5mA/60s.
- Application of frequency: 0~60Hz.
- Power: 0.4~600KW.
- Working noise: <65Db.
- Insulation resistance: 1000VDC: >100MOhm.
- Dimension (mm) K x S x G x A x B x L*Z: 205 x 110 x 190 x 110 x 70 x 7*15.
