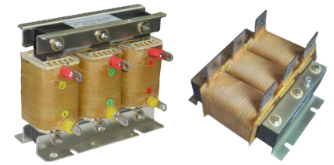

3-Phase 380V 1.5KW AC Output Choke
SKU: EM-RAO3-1d5
Out of stock
Availability: Out of Stock
Short Description
Specifications:
- Rated Power (KW): 1.5.
- Rated Current (A): 2.5.
- Insulation class: F.
- Housing: T1.
Technical Data:
- Inductance value (MH) @50Hz: 4.2.
- Rated working voltage: AC 3/380V~480V.
- Tolerance voltage test: 3.5KV, AC/50Hz/5mA/60s.
- Application of frequency: 0~60Hz.
- Power: 0.4-600KW.
- Working noise: <65Db.
- Insulation resistance: 1000VDC: >100MOhm.
- Dimension (mm) K x S x G x A x B x L*Z: 120 x 76 x 110 x 70 x 47 x 7*12.
