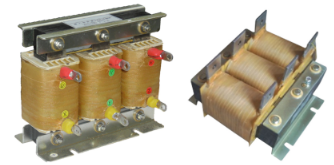

3-Phase 525V 15KW AC Output Chokes
SKU: EM-RAO5-015
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
EM-RAO5 Series Input Chokes:
Rated Power (KW): 15.
Rated Current (A): 40.
Insulation class: F.
Housing: T1.
Buy currently uses Select Automation shop pricing and checkout.
Technical Data:
Rated working voltage: AC 3/380V~480V.
Tolerance voltage test: 3.5KV, AC/50Hz/5mA/60s.
Application of frequency: 0~60Hz.
Power: 0.4~600KW.
Working noise: <65Db.
Insulation resistance: 1000VDC: >100MOhm.
Inductance value(mH) @50Hz: 0.262.
Dimension (mm) K x S x G x A x B x L*Z: 205 x 110 x 190 x 110 x 70 x 7*15.
