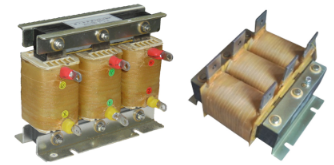

3-Phase 525V 560KW AC Output Choke (Reactor)
SKU: EM-RAO5-560
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
EM-RAO5 Series Output Chokes:
Rated Power (KW): 560.
Rated Current (A): 1100.
Insulation class: F.
Housing: T4.
Buy currently uses Select Automation shop pricing and checkout.
Technical Data:
Rated working voltage: AC 3/380V~480V.
Tolerance voltage test: 3.5KV, AC/50Hz/5mA/60s
Application of frequency: 0~60Hz
Power: 0.4~600KW
Working noise: <65Db
Insulation resistance: 1000VDC: >100MOhm
Inductance value(mH) @50Hz: 0.00955
Dimension (mm) K x S x G x A x B x L*Z: 435 x 290 x 386 x 240 x 162 x 14*24
