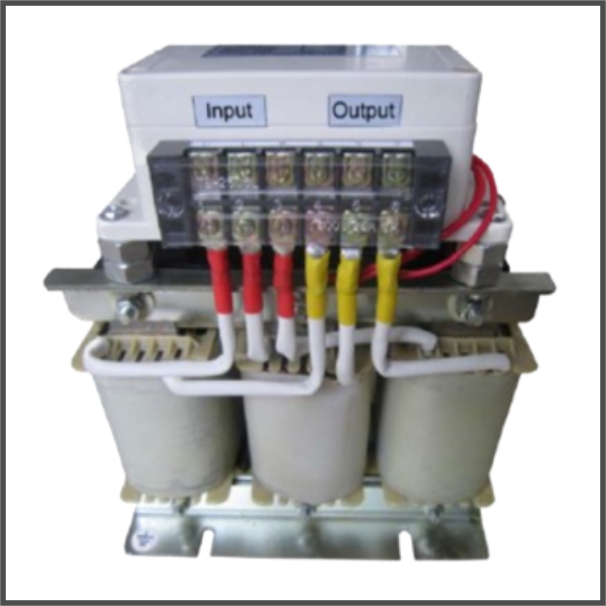

3-Phase 380V SineWave Filter 90kW
SKU: EM-SWF3-090
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
AC motors are most efficient when powered by clean sinusoidal electricity.
VSDs/Solar Drives generate square waves that are modulated such that their pulse width can be changed continually.
VSDs/Solar Drives maintain excellent control over the width and amplitude of square waves, resulting in good approximations of sine waves (as seen on an oscilloscope).
However, even the most advanced VSDs/Solar Drives cannot approach the purity of a pure sine wave.
Installing a sine wave filter between the VSD/Solar Drive and the motor' smooths' the PWM signal of the VSD/Solar Drive and converts it into a nearly perfect sinusoidal power wave form.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Rated Voltage: 380V.
Power Rating: 90kW.
Work Current: 5A-1600A.
Work Frequency: 50/60Hz.
Switching Frequency/Carrier Frequency: 2~8KHz.
Insulation Class: F, H.
Rated Voltage drop: 8~12%.
Voltage harmonic distortion: THD±5%.
