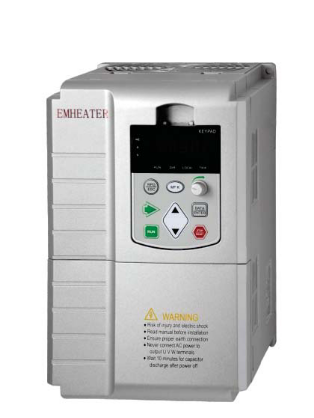

220V 45KW 176A EM12-SP Series Solar Inverter

Pricing available on request EM12 Series Solar Inverter Features: MPPT algorithm with >99% efficiency for quickly tracking the maximum power point of photovoltaic cells. MPPT tracking of the operating point voltage of solar batteries can be done automatically or manually. Both manual and automatic modes are available for all-weather usage. Acknowledge that "sunset sleep and sunrise work." 35 different types of protective functions. Enables automatic short circuit detection during power-up. Features including auto sleep, pump dry protection, low frequency protection, overload protection, and others. Complete protection against dry pumping, short circuit, overload, overcurrent, overvoltage, and undervoltage. Vector control (0~300HZ); output frequency range: V/F (0~3000HZ). Overload capability: 3 seconds at 180% of rated current, and 60 seconds at 150% of rated current. Accuracy of speed: ±0.5% (SVC); ±0.02% (VC). Input pulse setting: 0–100 kHz. Analog control, terminal control, remote control, and support for the RS232/RS485 interface.
