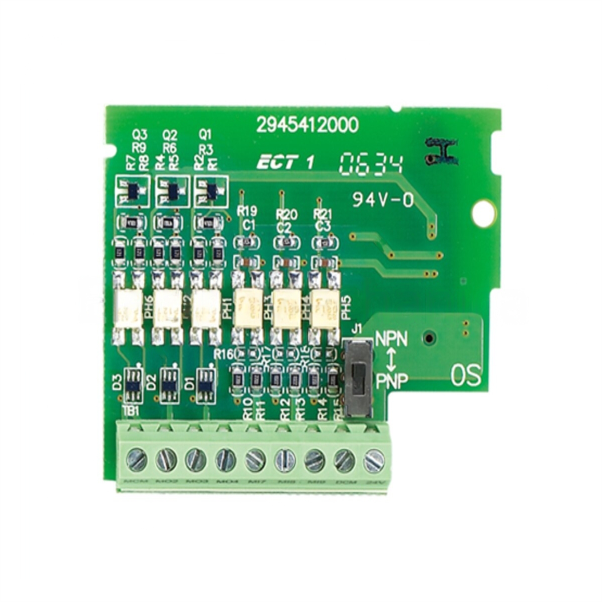

Specifications:

• Compatibility: E series drives.
• Functionality: Provides 3 Digital Inputs and 3 Digital Outputs.
• Digital Inputs: Suitable for volt-free contacts (4mA required for activation).
• Digital Outputs: Open collector outputs, 48VDC, 50mA max.
• Installation: Fits internally in the VFD-E module.
• Additional Features: Programming menu becomes available when the option card is correctly fitted.
• This I/O card enhances the capabilities of the E series drives by providing additional input and output options.
