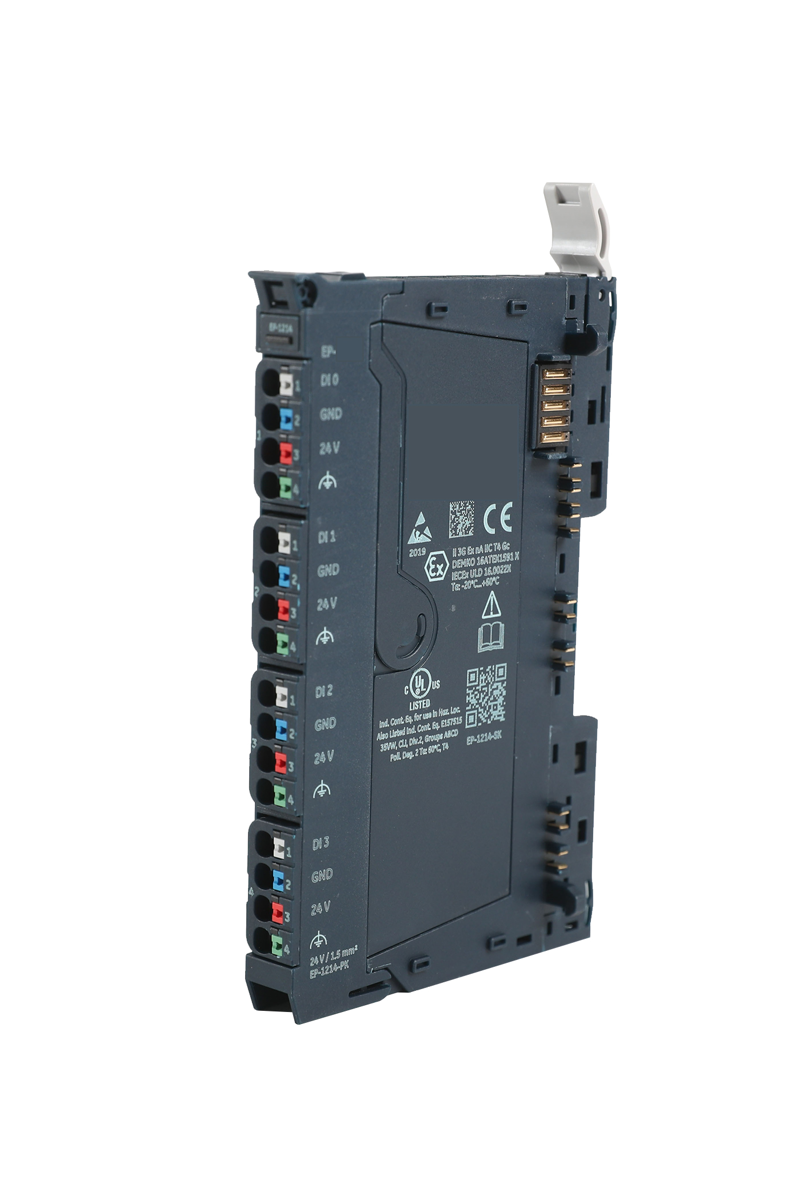

RSTi-EP Digital Input, 8 Points, Positive Logic, 24VDC 3 Wire
SKU: EP-1318
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The RSTi-EP remote I/O system is ideal for Industrial Internet applications.
It features an extended operating temperature range, enhanced diagnostics, plug-and-play connectivity and high channel density.
Support for PROFINET RT, PROFIBUS, Modbus TCP and EtherCAT.
Extended operating temperature range, enhanced diagnostics.
High-speed system bus reads up to 256 DI/DOs in 20 mS.
DIN rail mounted.
Plug-and-Play Installation.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Part Number: EP-1318
Input Count, Type & Speed: 8 Point, Positive Logic; 3mS, Configurable
Supply Voltage and on/Off Voltage: 24VDC; Range 20.4~28.8VDC; On >11VDC; Off <5.0VDC
Current Consumption Isys & Iin: 8mA; 30mA
Approvals & Standards Ordinary Locations: UL 508, CSA C22.2 No. 0-M91
Approvals & Standards Hazardous Locations: Class 1 Division 2, Gr. A, B, C, D, ISA 12.12.01: 2007 CSA C22.2 No. 213-M1987 (Reaffirmed 2008)
