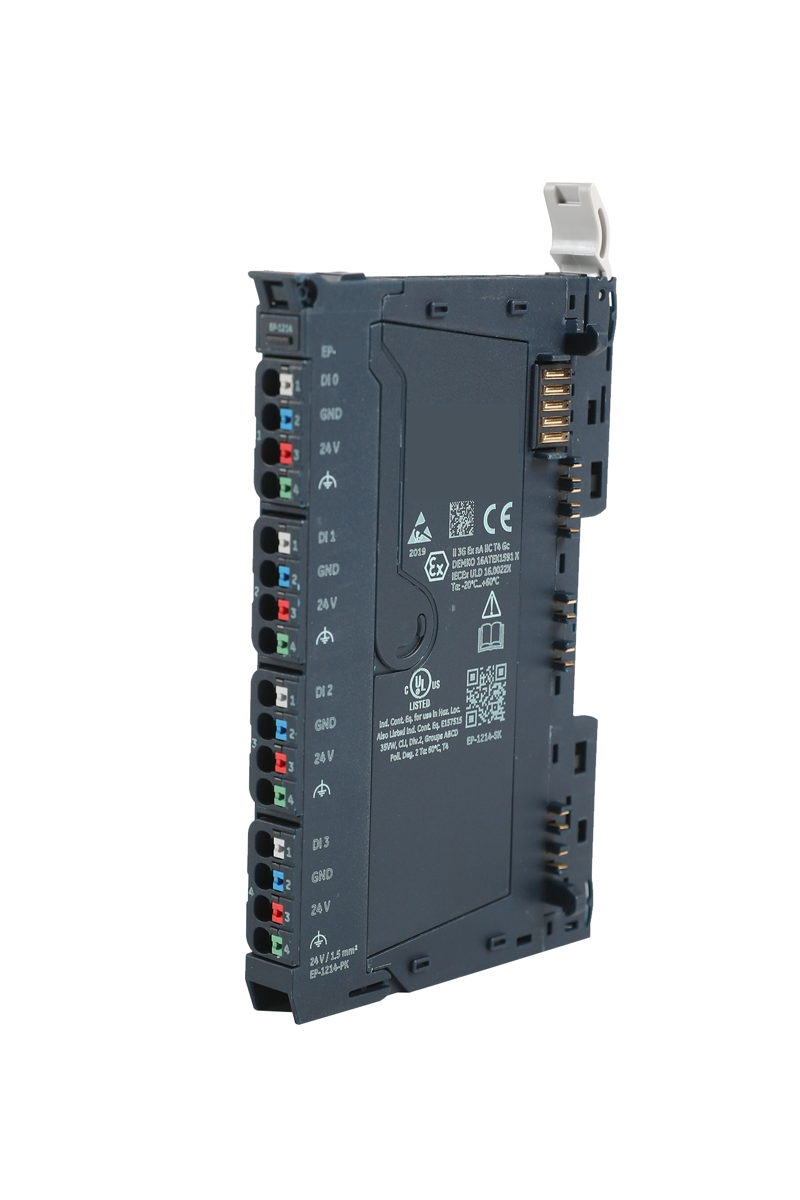

RSTi-EP Safe-Feed Input
SKU: EP-1902
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The RSTi-EP remote I/O system is perfect for applications on the Industrial Internet.
It has high channel density, plug-and-play connectivity, improved diagnostics, and an expanded operational temperature range.
Support for PROFINET RT, PROFIBUS, Modbus TCP and EtherCAT.
Extended operating temperature range, enhanced diagnostics.
High-speed system bus reads up to 256 DI/DOs in 20 mS.
DIN rail mounted.
Plug-and-Play Installation.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Part Number: EP-1902
Input Count, Type & Speed: 2-point Safe Feed-Input; Turn On <2S; Turn Off < 20mS
Supply Voltage and on/Off Voltage: 24VDC; max. 10 A (only to support the inputs dedicated inputs)
Current Consumption Isys & Iin: 8mA 20.4-28.8VDC; 45mA
Safety Level: SIL3 (IEC 61508), SIL CL3 (IEC 62061), PLe and Cat. 4 (DIN EN ISO 13849-1), regarding the entire safety chain
System Redundancy: PNSR
