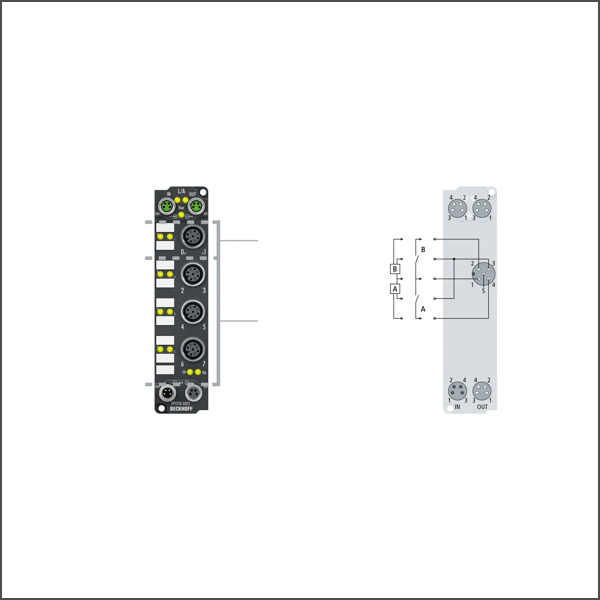

EP1258-0002 EtherCAT Box

Protocol: EtherCAT Bus interface: 2 x M8 socket, shielded, screw type Specification: EN 61131-2, type 1/3 Number of inputs: 8, 2 with timestamp Input connections: M12, screw type Nominal input voltage: 24 V DC (-15 %/+20 %) Input filter: 10 µs “0” signal voltage: -3…+5 V (similar to EN 61131-2, type 3) “1” signal voltage: 11…30 V (similar to EN 61131-2, type 3) Input current: typ. 3 mA (similar to EN 61131-2, type 3) Distributed clocks: yes Sensor supply: from control voltage, max. 0.5 A, short-circuit proof in total Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin Resolution timestamp: 1 ns (channel 0/1) Precision of timestamp: 10 ns (+ input delay) (channel 0/1) Distributed clock precision: < 100 ns (channel 0/1) Current consumption from US: 120 mA Electrical isolation: 500 V Special features: timestamp, latch last edge Weight: approx. 165 g Operating/storage temperature: -25…+60 °C/-40…+85 °C Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable Ex marking: II 3 G Ex nA IIC T4 Gc
