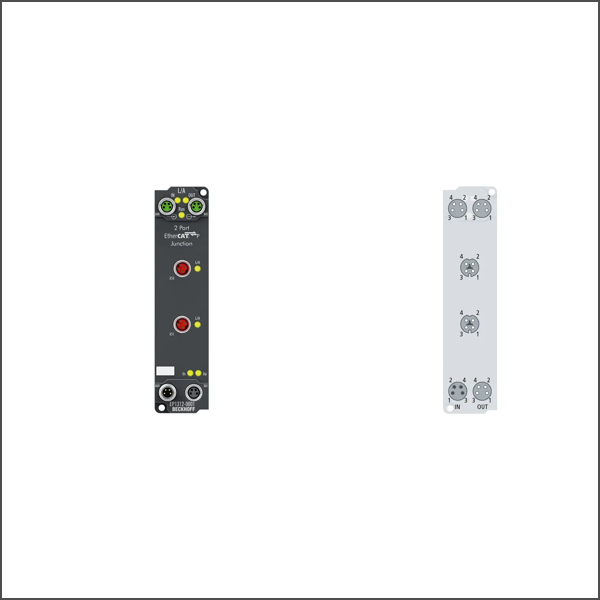

EP1312-0001 EtherCAT Box
SKU: EP1312-0001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 2-port EtherCAT P junction enables configuration of EtherCAT P topologies from an EtherCAT system. A modular EtherCAT P star can be realized by using several EP1312-0001 in series.
Buy currently uses Select Automation shop pricing and checkout.
Task within EtherCAT system: coupling of EtherCAT P junctions
Number of channels: IN: 1 x EtherCAT, OUT: 1 x EtherCAT, 2 x EtherCAT P
Bus interface: 2 x M8 socket, shielded, screw type, 2 x P-coded M8 socket, screw type
Nominal voltage: 24 V DC (-15 %/+20 %)
Total current: max. 3 A per US and UP for all EtherCAT P ports in total
Current consumption from US: typ. 120 mA
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
