EP1809-0042 EtherCAT Box
SKU: EP1809-0042
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

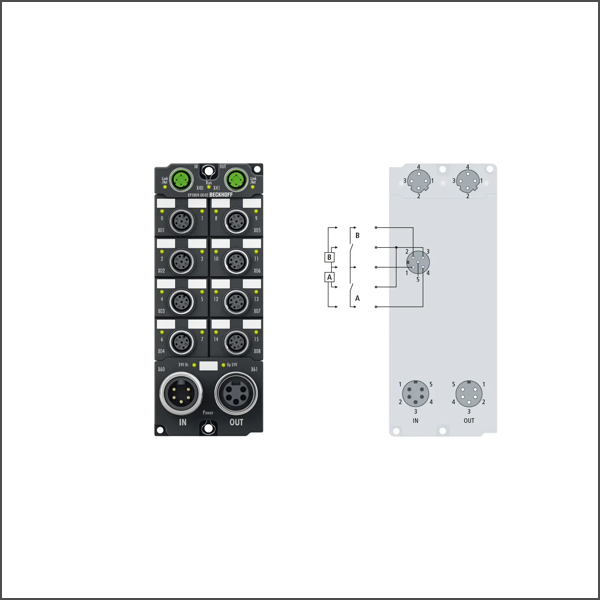

The EP1809-0042 EtherCAT Box with digital inputs acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the controller. The state of the signals is indicated by light emitting diodes. The signals are connected via M12 screw type connectors.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M12 socket, 4-pin (D-coded)
Specification: EN 61131-2, type 1/3
Number of inputs: 16
Input connections: M12, screw type
Nominal input voltage: 24 V DC (-15 %/+20 %)
Input filter: 3.0 ms
“0” signal voltage: -3…+5 V (EN 61131-2, type 3)
“1” signal voltage: 11…30 V (EN 61131-2, type 3)
Input current: typ. 3 mA (EN 61131-2, type 3)
Sensor supply: from control voltage, max. 0.5 A, short-circuit proof in total
Power supply connection: feed: 1 x 7/8" plug, 5-pin; downstream connection: 1 x 7/8" socket, 5-pin
Current consumption from US: typ. 130 mA
Diagnostics: open-circuit detection, undervoltage
Electrical isolation: 500 V
Weight: approx. 440 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL in preparation
