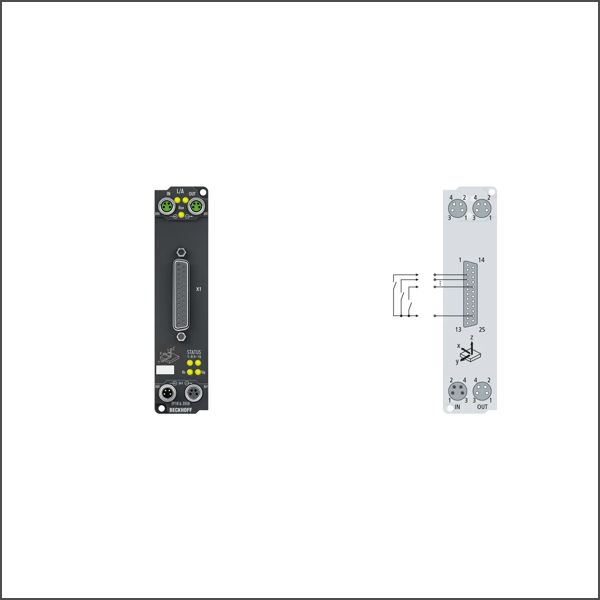

EP1816-3008 EtherCAT Box
SKU: EP1816-3008
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EP1816-3008 EtherCAT Box with 16 digital inputs acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the controller.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type
Specification: EN 61131-2, type 1/3
Number of inputs: 16
Input connections: D-sub socket, 25-pin, UNC4-40
Sensors: ±2…16 g | 10 bits
Nominal input voltage: 24 V DC (-15 %/+20 %)
Input filter: 10 µs
“0” signal voltage: -3…+5 V (EN 61131-2, type 3)
“1” signal voltage: 11…30 V (EN 61131-2, type 3)
Input current: typ. 3 mA (EN 61131-2, type 3)
Distributed clocks: yes
Sensor supply: from control voltage, max. 0.5 A, short-circuit proof in total
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Current consumption from US: 120 mA
Electrical isolation: 500 V
Special features: integrated accelerometers
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
