EP1859-0042 EtherCAT Box
SKU: EP1859-0042
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

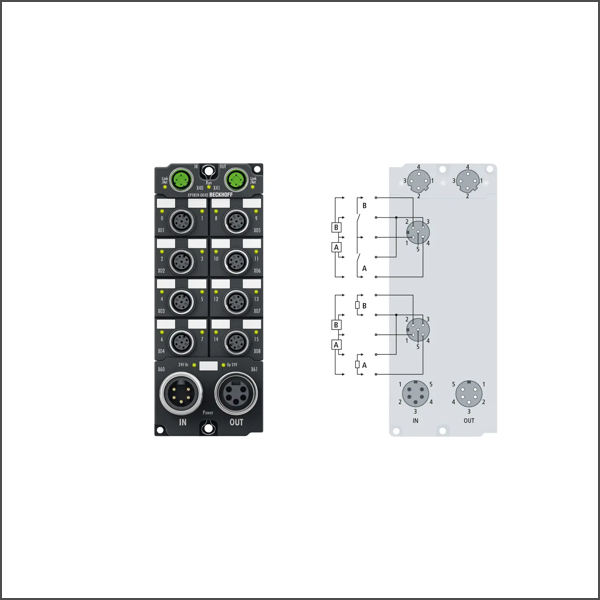

The EP1859-0042 EtherCAT Box combines eight digital inputs (four M12 sockets on the left) and eight digital outputs (four M12 sockets on the right) in one device. The inputs have a filter of 3.0 ms. The outputs process load currents up to 0.5 A, are short-circuit proof and protected against polarity reversal.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M12 socket, 4-pin (D-coded), shielded, screw type
Specification: EN 61131-2, type 1/3
Number of channels: 8 inputs + 8 outputs
Input/output connections: M12, screw type
Input filter: 3.0 ms
“0” signal voltage: -3…+5 V
“1” signal voltage: 11…30 V, 3 mA input current (EN 61131-2, type 1/3)
Sensor supply: from control voltage, max. 0.5 A, short-circuit proof in total
Load type: ohmic, inductive, lamp load
Rated load voltage: 24 V DC (-15 %/+20 %)
Max. output current: 0.5 A per channel, individually short-circuit proof
Switching times: typ. TON: 50 µs, typ. TOFF: 100 µs
Short-circuit current: typ. 1.5 A
Current consumption: 120 mA
Auxiliary power current: typ. 20 mA + load
Power supply connection: feed: 1 x 7/8" plug, 5-pin; downstream connection: 1 x 7/8" socket, 5-pin
Electrical isolation: 500 V
Weight: approx. 440 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, (UL in preparation)
