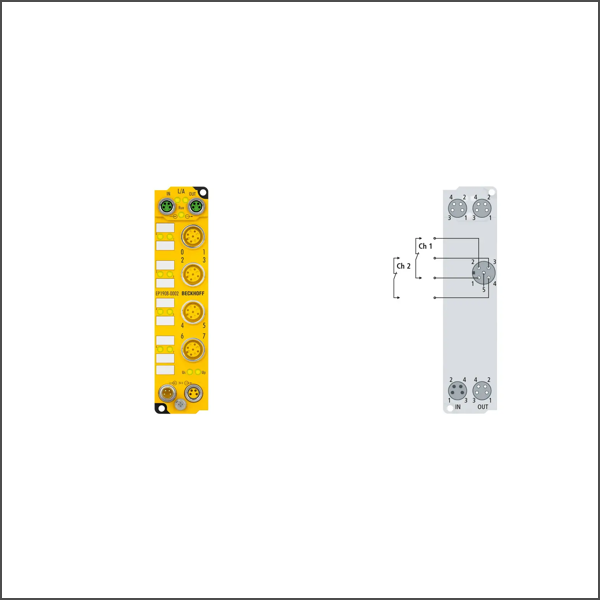

EtherCAT Box EP1908-0002
SKU: EP1908-0002
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EP1908-0002 TwinSAFE component is a digital EtherCAT Box for sensors with potential-free contacts for 24 V DC. It has eight fail-safe inputs. The signals are transmitted via FSoE to a TwinSAFE Logic-capable component and can be used there to evaluate them in terms of safety.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: TwinSAFE/Safety over EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type
Connection technology: M12, screw type
Number of inputs: 8
Response time: typ. 5.5 ms (read input/write to bus)
Fault response time: ≤ watchdog time (parameterizable)
Installation position: variable
Weight: approx. 170 g
Protection rating: IP65/66/67 (according to EN 60529)
Safety standard: EN ISO 13849-1: 2015 (Cat. 4, PL e) and EN 61508: 2010 (SIL 3)
Dimensions (W x H x D): 30 mm x 126 mm x 26.5 mm
Material: PA6 (polyamide)
Installation: 2 fixing holes 3.5 mm diameter for M3
