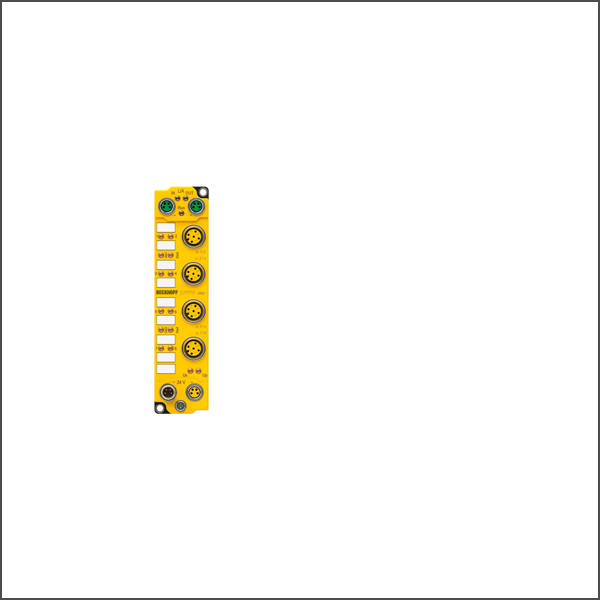

EtherCAT Box, 8-channel digital input, 24 V DC, M12, TwinSAFE EP1918-2202
SKU: EP1918-2202
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EP1918-0002 TwinSAFE component is a digital EtherCAT Box for sensors with potential-free contacts for 24 V DC. It has eight fail-safe inputs. The signals are transmitted via FSoE to a TwinSAFE Logic-capable component and can be used there to evaluate them in terms of safety.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: TwinSAFE/Safety over EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type
Connection technology: M12, screw type
Specification: link unit between safe input and output signals
Number of inputs: 8
Fault response time: ≤ watchdog time (parameterizable)
Current consumption from US/UP: –
Installation position: variable
Protection rating: IP67 (according to EN 60529)
Dimensions (W x H x D): 30 mm x 126 mm x 26.5 mm
Material: PA6 (polyamide)
Installation: 2 fixing holes 3.5 mm diameter for M3
