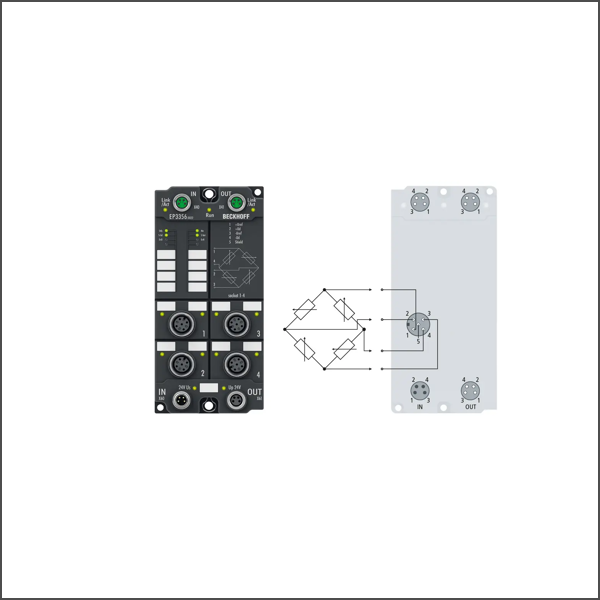

EP3356-0022 EtherCAT Box

Protocol: EtherCAT Bus interface: 2 x M8 socket, shielded, screw type Number of inputs: 2, for 1 resistor bridge in full bridge technology Input connections: M12, screw type Signal type: resistor bridge, strain gauge Internal resistance: > 200 kΩ (UREF), > 1 MΩ (UD) Resolution: 24 bit, 32 bit presentation Measurement error/ uncertainty: < ±0.01 % for the calculated load value in relation to the final load value with a 10 V feed and 20 mV bridge voltage (hence nominal strain gauge characteristic value of 2 mV/V), self-calibration active, 50 Hz filter active Conversion time: 0.1…250 ms, configurable, max. 10,000 samples/s Input filter limit frequency: 10 kHz low pass (-3 dB) Conversion rate: 10,000…4 samples/s (0.1…250 ms conversion time) Nominal voltage: 24 V (-15 %/+20 %) Distributed clocks: yes Sensor supply: 10 V (supplied by the EP3356 from UP) Current consumption from US: 120 mA Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin Supported nominal sensitivity: all, parameter resolution: 0.01 µV/V; recommended: 0.5…2.5 mV/V Special features: self-calibration, quadruple averager, dynamic filters, fast data sampling, parallel connection Operating/storage temperature: -25…+60 °C/-40…+85 °C Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable Approvals/markings: CE, UL
