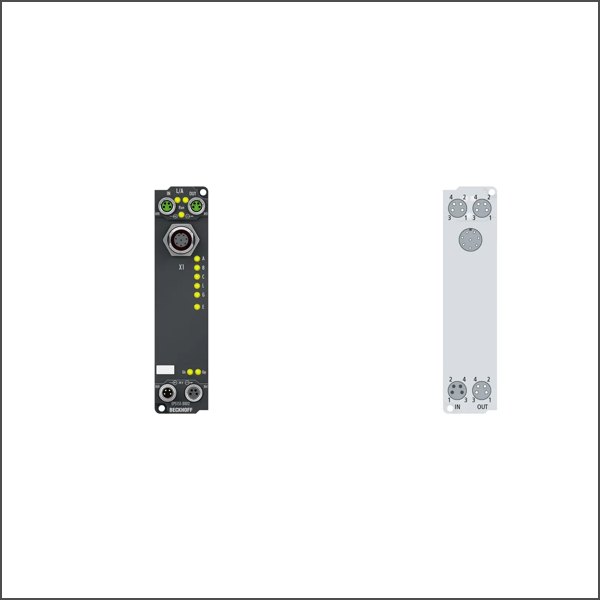

EP5151-0002 EtherCAT Box
SKU: EP5151-0002
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EP5151-0002 EtherCAT Box is an interface for the direct connection of 24 V single ended signals. Input frequencies up to 1 MHz can be evaluated. Two additional 24 V digital inputs are available for storing, locking and setting the counter reading. The error message output of an encoder can be connected and evaluated via the status input. The 24 V supply of the encoder is directly provided via the D-sub socket of the EP5151-0002.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type
Connection technology: M12, 8-pin
Encoder type: incremental encoder
Number of channels: 1
Connection encoder/sensor: M12, screw type, 8-pin
Encoder connection: 1 x A, B, C: 24 V DC, single-ended connection, EN 61131-2, type 1, “0”: < 5 V DC, “1”: > 15 V DC, typ. 5 mA
Encoder operating voltage: 24 V DC/0.5 A (generated from US)
Nominal voltage: 24 V DC (-15 %/+20 %)
Encoder output current: 0.5 A
Input signal: 24 V DC, single-ended
Counter : 1 x 16/32 bit switchable
Limit frequency: 4 million increments/s (with 4-fold evaluation), corresponding to 1 MHz
Quadrature decoder: 4-fold evaluation
Zero-pulse latch:1 x 16/32 bit switchable
Commands: read, set, enable
Distributed clocks: yes
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Current consumption from US: typ. 130 mA + sensor supply
Electrical isolation: 500 V
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Approvals/markings: CE, UL
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
