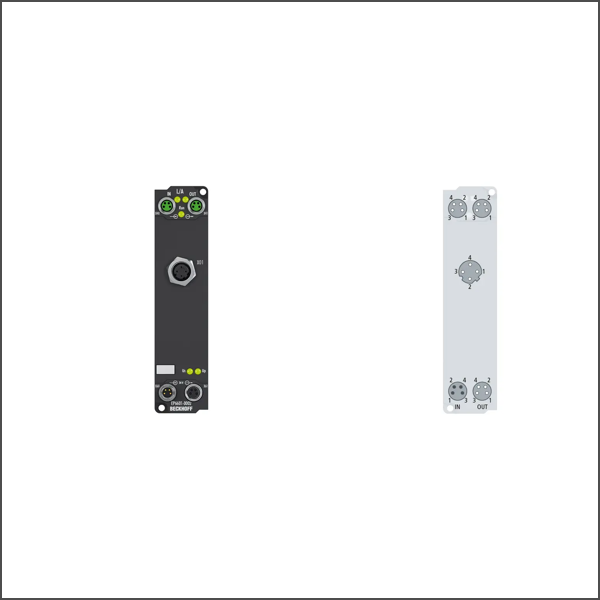

EP6601-0002 EtherCAT Box
SKU: EP6601-0002
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EP6601-0002 Ethernet switch port module is used for the decentralized connection of Ethernet devices to the EtherCAT Box network. The EtherCAT system relays the Ethernet communication of the connected devices fully transparent and collision-free.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type
Bus system: all Ethernet (IEEE 802.3)-based protocols, store and forward switching mode
Ethernet interface: 10BASE-T/100BASE-TX Ethernet, M12, D-coded, 4-pin
Data transfer rates: 10/100 Mbit/s, IEEE 802.3u auto-negotiation, half or full duplex at 10 and 100 Mbit/s possible, automatic settings
Cable length: up to 100 m twisted pair
Hardware diagnostics: status LEDs
Nominal voltage: 24 V (-15 %/+20 %)
Current consumption from US: typ. 120 mA
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Electrical isolation: 500 V
Weight: approx. 165 g
Configuration: no
Special features: support of RT Ethernet, publisher/subscriber, DHCP/BootP server
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
