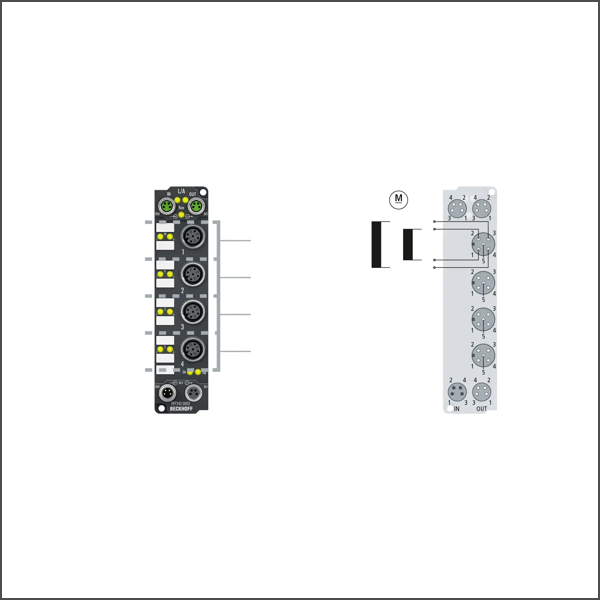

EP7342-0002 EtherCAT Box, 2-channel motion interface, DC motor, 48 V DC, 4.5 A, M12, with incremental encoder

Bus interface: 2 x M8 socket, shielded, screw type Number of outputs: 2 Connection method: M12, screw type Rated load voltage: 8…48 V DC Load type: DC brush motor, inductive Nominal voltage: 8…48 V DC Output current: per channel max. 3.5 A (short-circuit proof, common thermal overload warning for both output stages) Distributed clocks: yes PWM clock frequency: 32 kHz with 180° phase shift each Duty factor: 0…100 % (voltage-controlled) Resolution: max. 10 bit current, 16 bit speed Power supply connection feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin Electrical isolation: 500 V Configuration: adaptation and optimisation of the respective motor via the controller Current consumption from US: 120 mA Special features: travel distance control, encoder input Operating/storage temperature: -25…+60 °C/-40…+85 °C Weight: approx. 165 g Vibration/shock resistance conforms to: EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to: EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP65/66/67 (conforms to EN 60529)/variable Approvals/markings: CE, ATEX Ex marking: II 3 G Ex nA IIC T4 Gc
