EP9208-1035 EtherCAT Box
SKU: EP9208-1035
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

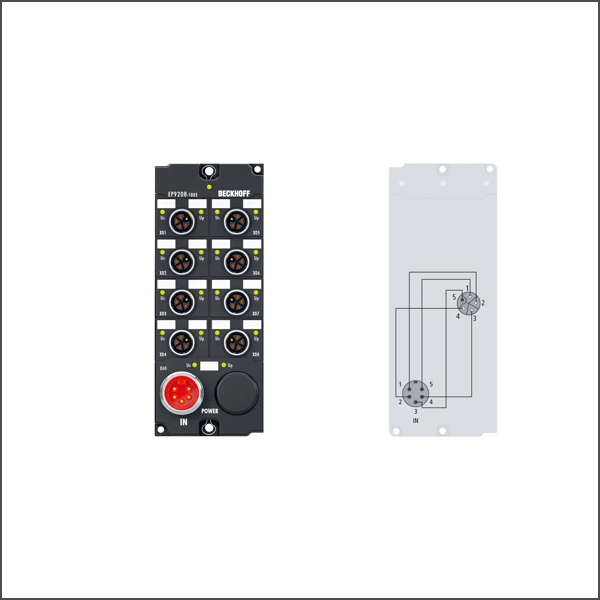

The EP9208-1035 EtherCAT Box is a fully passive distribution box. It is supplied via a 7/8" connector. The eight outputs are executed as M12 sockets with L-coding according to EN 61076; the EP9208-1035 is thus suitable for carrying currents up to 16 A at 24 V DC/48 V DC on each of two channels per socket.
Buy currently uses Select Automation shop pricing and checkout.
Technology: passive distribution box
Number of channels: 8
Connection method: M12 socket, L-coded, 4 + FE
Max. output current: 16 A
Power supply connection: feed: 1 x 7/8" plug, 5-pin; downstream connection: –
Weight: approx. 440 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL in preparation
