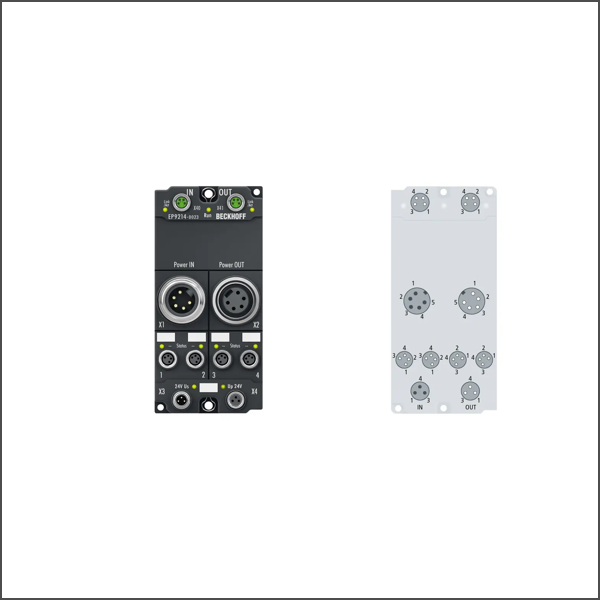

EP9214-0023 EtherCAT Box
SKU: EP9214-0023
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EP9214-0023 enables connection of four EtherCAT Box power supply branches. In each 24 V branch the current consumption for the control voltage US and the peripheral voltage UP is monitored, limited, and, if necessary, switched off.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type
Number of outputs: 4 x M8, 4-pin (per US/UP)
Connection method: M8 socket, 4-pin
Max. output current: per M8: 4 A per US and UP
Load type: EtherCAT Box modules
Signaling contact: potential-free make contact, M8
Nominal voltage: 24 V DC (-15 %/+20 %)
Power supply connection: feed: 1 x 7/8" plug, 5-pin; downstream connection: 1 x 7/8" socket, 5-pin
Electrical isolation: 500 V
Special features: energy-efficient switching on and off of EtherCAT devices
Weight: approx. 440 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL in preparation
