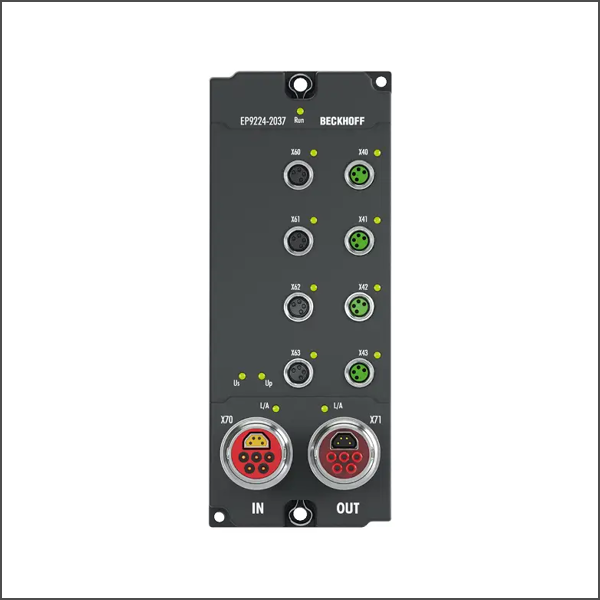

EP9224-2037 EtherCAT Box
SKU: EP9224-2037
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EP9224-2037 allows the distribution of one B17 ENP input to four EtherCAT ports and M8 power supply ports with B17-ENP forwarding. In each voltage branch, the current consumption for control voltage US and peripheral voltage UP is monitored, limited and, if necessary, switched off.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x B17 ENP, shielded, bayonet fitting
Task within EtherCAT system: coupling to the EtherCAT network, EtherCAT junction, feed in and monitoring of US and UP
Number of channels: 4 x EtherCAT, 4 x power supply
Infeed: ENP B17 5-pin, max. 15.5 A per US/UP at 45 °C
Power feedthrough: ENP B17 5-pin, max. 15.5 A per US/UP at 45 °C
Current rating per port: max. 4 A per US and UP
Power supply connection: feed: 1 x B17 ENP, 5G 1.5 mm²; downstream connection: 1 x B17 ENP, 5G 1.5 mm²
Data logging: recording of relevant data in case of failure
Special features: input voltages/currents, output currents via process data
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Approvals/markings: CE, (UL in preparation)
