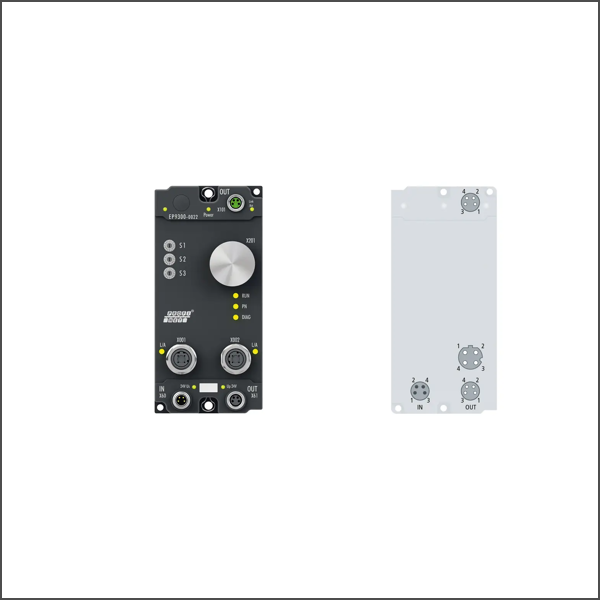

EP9300-0022 EtherCAT Box
SKU: EP9300-0022
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EP9300-0022 EtherCAT Box connects PROFINET RT networks to the EtherCAT Box modules (EPxxxx, ERxxxx and EQxxxx) and converts the telegrams from PROFINET RT to EtherCAT. One station consists of an EP9300-0022 and any number of EtherCAT Box modules.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: PROFINET RT
Bus interface: 2 x M12 socket, D-coded (switched)
Task within EtherCAT system: coupling of standard digital and analog EtherCAT Box modules to PROFINET RT networks
Number of EtherCAT Box modules: depending on the process data size
Type/number of peripheral signals: depending on the process data size
Nominal voltage: 24 V DC (-15 %/+20 %)
Current consumption from US: 120 mA
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Data transfer rates: 100 Mbit/s
Configuration: automatic
Electrical isolation: 500 V
Power supply: 24 V DC (-15 %/+20 %)
Special features: potted, shock- and vibration-resistant
Weight: approx. 320 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
