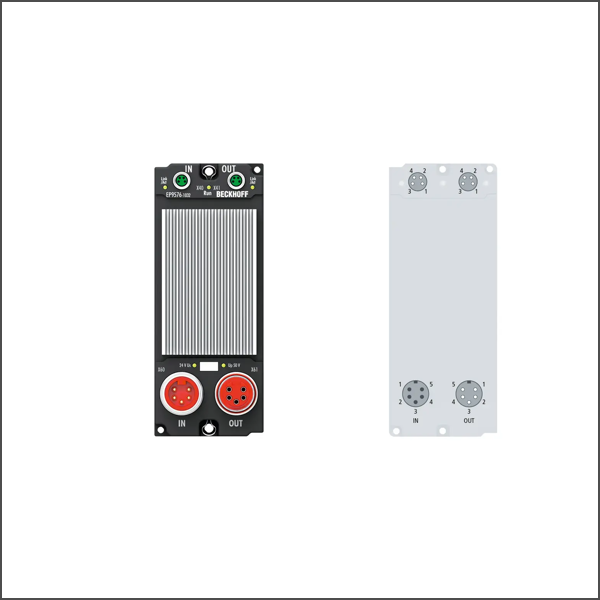

EP9576-1032 EtherCAT Box
SKU: EP9576-1032
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EP9576-1032 EtherCAT Box contains high-performance capacitors for stabilizing supply voltages. In connection with drive applications, reverse currents are stored and thus overvoltages are prevented. If the energy fed back exceeds the buffer capacity, it is dissipated.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type
Technology: brake chopper
Task within EtherCAT system: brake resistor for the dissipation of drive-related overvoltages
Nominal voltage: arbitrary up to 72 V
Power supply connection: feed: 1 x 7/8" plug, 5-pin; downstream connection: 1 x 7/8" socket, 5-pin
Capacity: 155 µF
Ripple current (max.): 10 A
Internal resistance: < 5 mΩ
Chopper voltage: adjustable
Integrated brake resistor: 11 Ω, 60 W
Overvoltage control range: typ. 1 V, parameterizable by CoE data
Braking resistor clock rate: load-dependent, max. 100 µs, 2-point control
Electrical isolation: 500 V
Diagnostics: temperature on board, over-/undervoltage
Special features: adjustable threshold
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, (UL in preparation) Can also be used with Motion-specific accessories with Brake resistors
