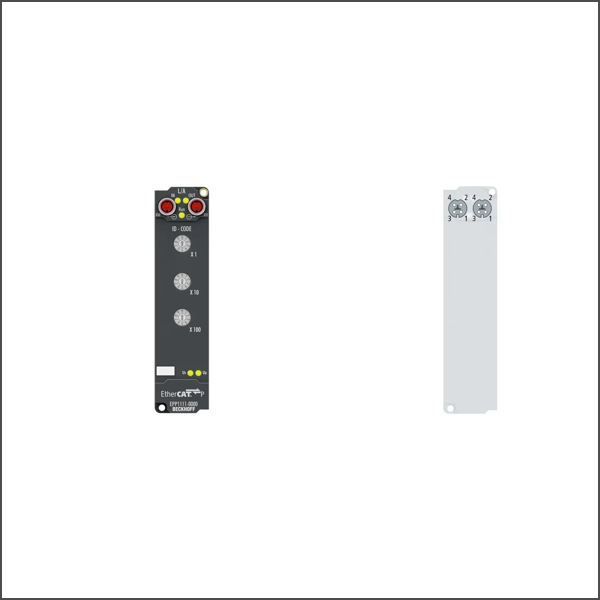

EPP1111-0000 EtherCAT P Box
SKU: EPP1111-0000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EPP1111 EtherCAT P Box has three decimal ID switches for assigning an ID to a group of EtherCAT components. This group can be present in any position in the EtherCAT P network, as a result of which variable topologies and Hot Connect groups can be realized in a simple manner.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type, P-coded
Task within EtherCAT system: identification of any EtherCAT group in the EtherCAT network
Data transfer medium: EtherCAT cable
Distance between stations: 100 m (100BASE-TX)
Data transfer rates: 100 Mbit/s
Nominal voltage: 24 V DC (-15 %/+20 %)
Configuration: not required
Power supply: 24 V DC
Weight: approx. 165 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
