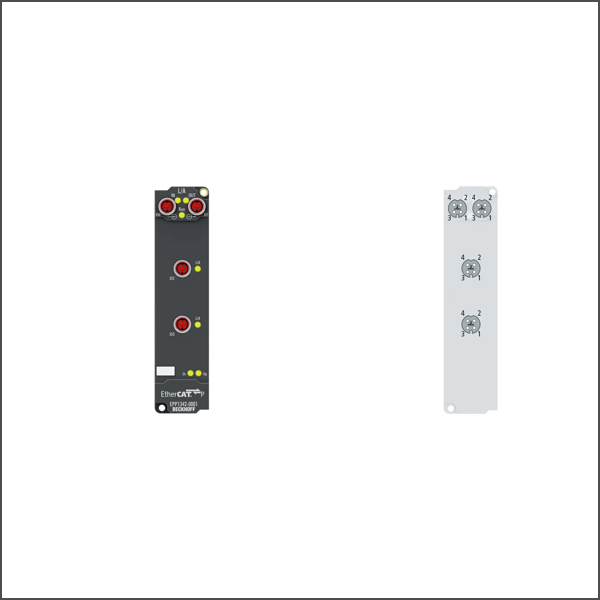

EPP1342-0001 EtherCAT P Box
SKU: EPP1342-0001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EPP1342-0001 should be used for topological branches without the need for voltage boosting. All infrastructure box modules feature status LEDs for EtherCAT, US and UP.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT P
Bus interface: M8 socket, shielded, screw type, P-coded
Task within EtherCAT system: 2-port EtherCAT P junction
Number of channels: IN: 1 x EtherCAT P, OUT: 3 x EtherCAT P
Nominal voltage: 24 V DC (-15 %/+20 %)
Total current: max. 3 A per US and UP for all EtherCAT P ports in total
Current consumption from US: typ. 100 mA
Distance between stations: 100 m (100BASE-TX)
Data transfer rates: 100 Mbit/s
Configuration: not required
Weight: approx. 165 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
