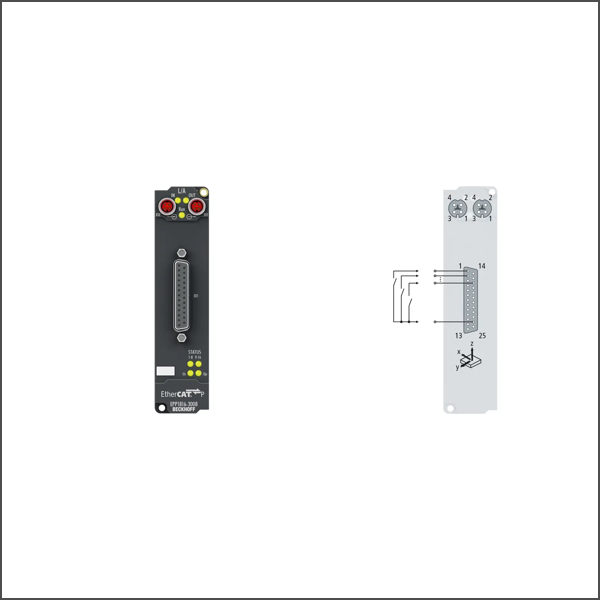

EPP1816-3008 EtherCAT P Box
SKU: EPP1816-3008
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The EPP1816-3008 EtherCAT P Box with digital inputs acquires binary control signals from the process level and transfers them, with electrical isolation, to the controller. The signal state is indicated by means of LEDs. The signal connection is established via a 25-pin D-sub connector.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: EtherCAT
Bus interface: 2 x M8 socket, shielded, screw type, P-coded
Specification: EN 61131-2, type 1/3
Nominal input voltage: 24 V DC (-15 %/+20 %)
“1” signal voltage: 11…30 V (EN 61131-2, type 3)
“0” signal voltage: -3…+5 V (EN 61131-2, type 3)
Input current: typ. 3 mA (EN 61131-2, type 3)
Number of inputs: 16
Input filter: 10 µs
Input connections: D-sub socket, 25-pin, UNC4-40
Sensors: ±2…16 g | 10 bits
Sensor supply: from control voltage, max. 0.5 A, short-circuit proof in total
Distributed clocks: yes
Current consumption from US: typ. 100 mA
Electrical isolation: 500 V
Special features: integrated accelerometers
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
